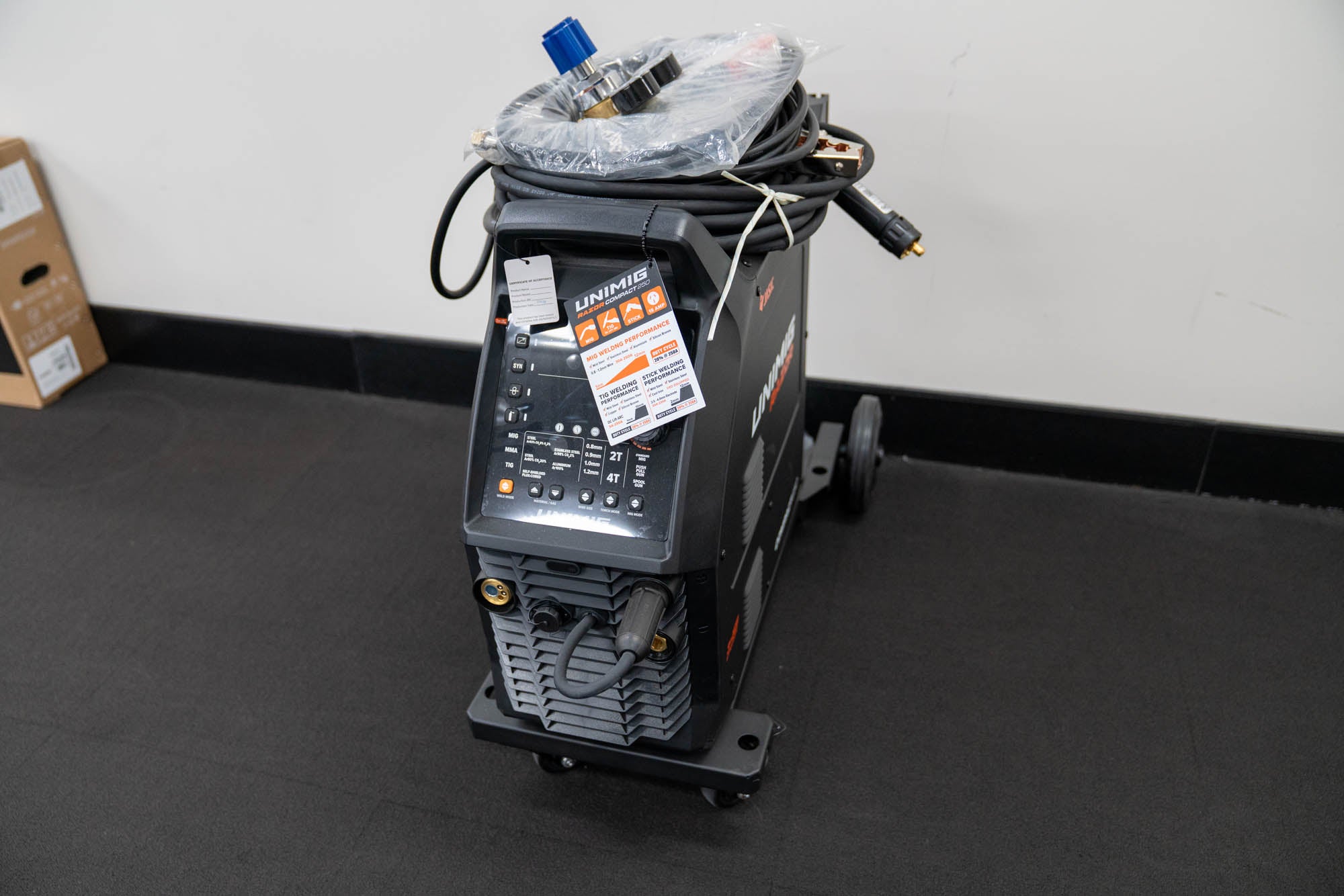

Like new, not in original box.
Serial Number: I24026529
Warranty: 5 Years
Condition DescriptionA - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.Refurbished Product DisclaimerPlease read the following information carefully before making a purchase of refurbished products from our website:Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.Each refurbished machine has been repaired by UNIMIG using genuine new parts.Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.Returns Policy: We do not accept change of mind returns for refurbished items.We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications
Built to last, the COMPACT 250 was designed for superior performance even in the toughest conditions, offering only top-quality welds.
HD Backlit Interface
Power Factor Correction (PFC)
Advanced MMA Features
Optional Remote Control
Smart Fan
Synergic MIG Control
Digital Control MIG Torch
Spool Gun Ready
Gas & Gasless MIG
Multi-Process Welding
Foot Control Ready
Trigger Controlled DC Lift Arc TIG
4 Geared Wire Drive
Push-Pull Gun Ready
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 15 AMP
Ieff (A): 15
RATED OUTPUT: 30A/15.5V - 250A/26.5V
NO LOAD VOLTAGE (V): 65
PROTECTION CLASS: IP23S
INSULATION CLASS: H
MINIMUM GENERATOR (kVA): 11
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
WELDS: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
WARRANTY (Years): 5
MIG WELDING CURRENT RANGE: 30-250A
MIG DUTY CYCLE @ 40°C: 20% @ 250A
60% @ 144A
100% @ 112A
MIG WIRE SIZE RANGE: 0.6-1.2mm
MIG WIRE SPOOL SIZE: 5kg / 15kg
MIG WELDING THICKNESS RANGE: 1-12mm
DRIVE ROLLER SIZE: 30/22 (x2)
TIG FUNCTION TYPE: DC Lift Arc
TIG WELDING CURRENT RANGE: 5-250A
TIG DUTY CYCLE @ 40°C: 20% @ 250A
60% @ 144A
100% @ 112A
TIG WELDING THICKNESS RANGE: 1-10mm
STICK WELDING CURRENT RANGE: 20-220A
STICK DUTY CYCLE @ 40°C: 20% @ 220A
60% @ 127A
100% @ 98A
STICK ELECTRODE RANGE: 2.5-4.0mm
STICK WELDING THICKNESS RANGE: 2-12mm
DIMENSIONS (mm): 900×480×760
WEIGHT (kg): 41.3
WIRE DRIVE: 4 Geared
VRD: Yes
SPOOL GUN CONNECTION: Yes
PUSH / PULL GUN CONNECTION: Yes
REMOTE CONTROL CONNECTION: Yes
FOOT CONTROL CONNECTION: Yes
BURNBACK ADJUSTMENT: Yes
INDUCTANCE CONTROL: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
