Light wear, not in original box.
Serial Number: I21022142
Warranty: 3 Years
Condition DescriptionA - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.Refurbished Product DisclaimerPlease read the following information carefully before making a purchase of refurbished products from our website:Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.Each refurbished machine has been repaired by UNIMIG using genuine new parts.Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.Returns Policy: We do not accept change of mind returns for refurbished items.We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications

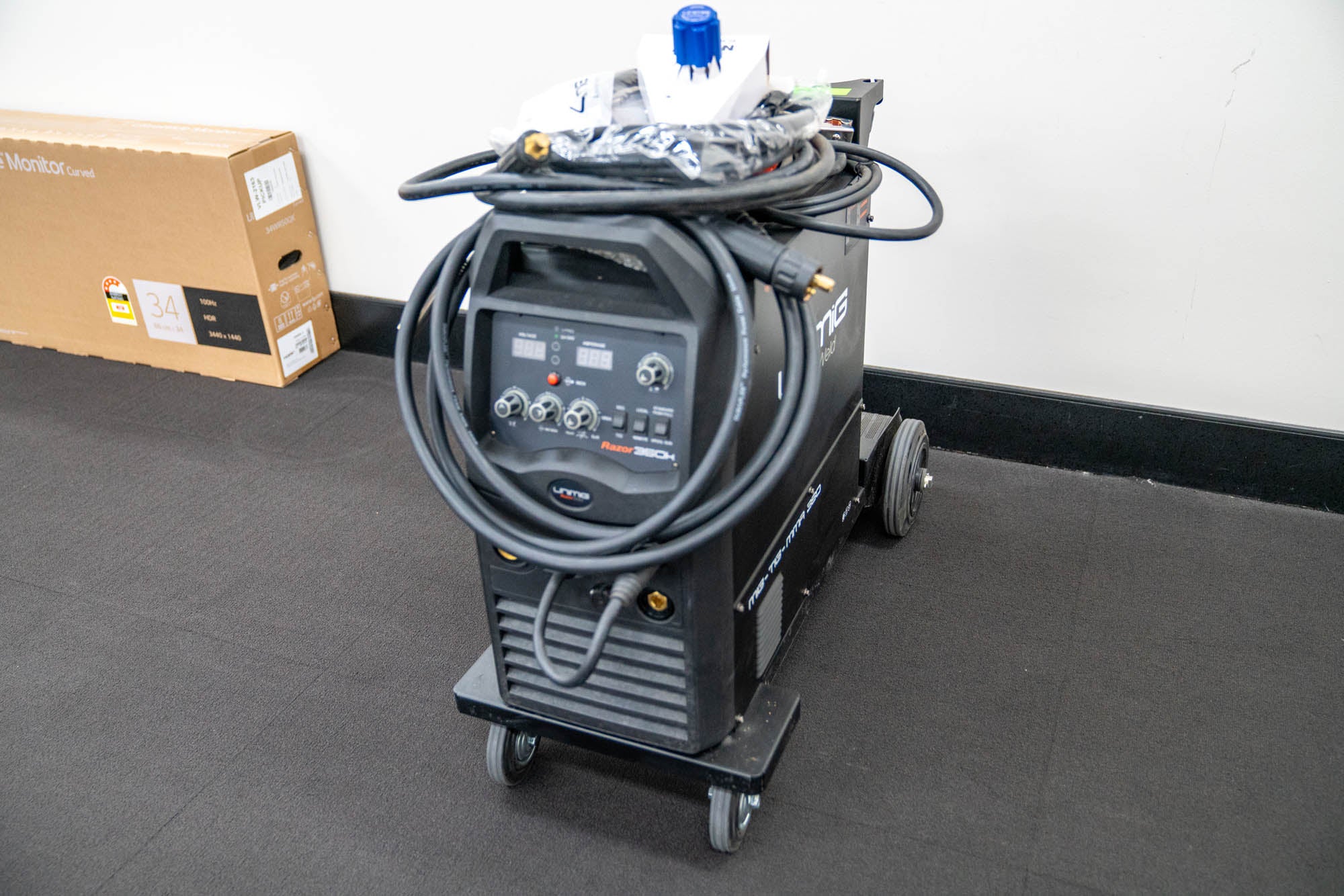

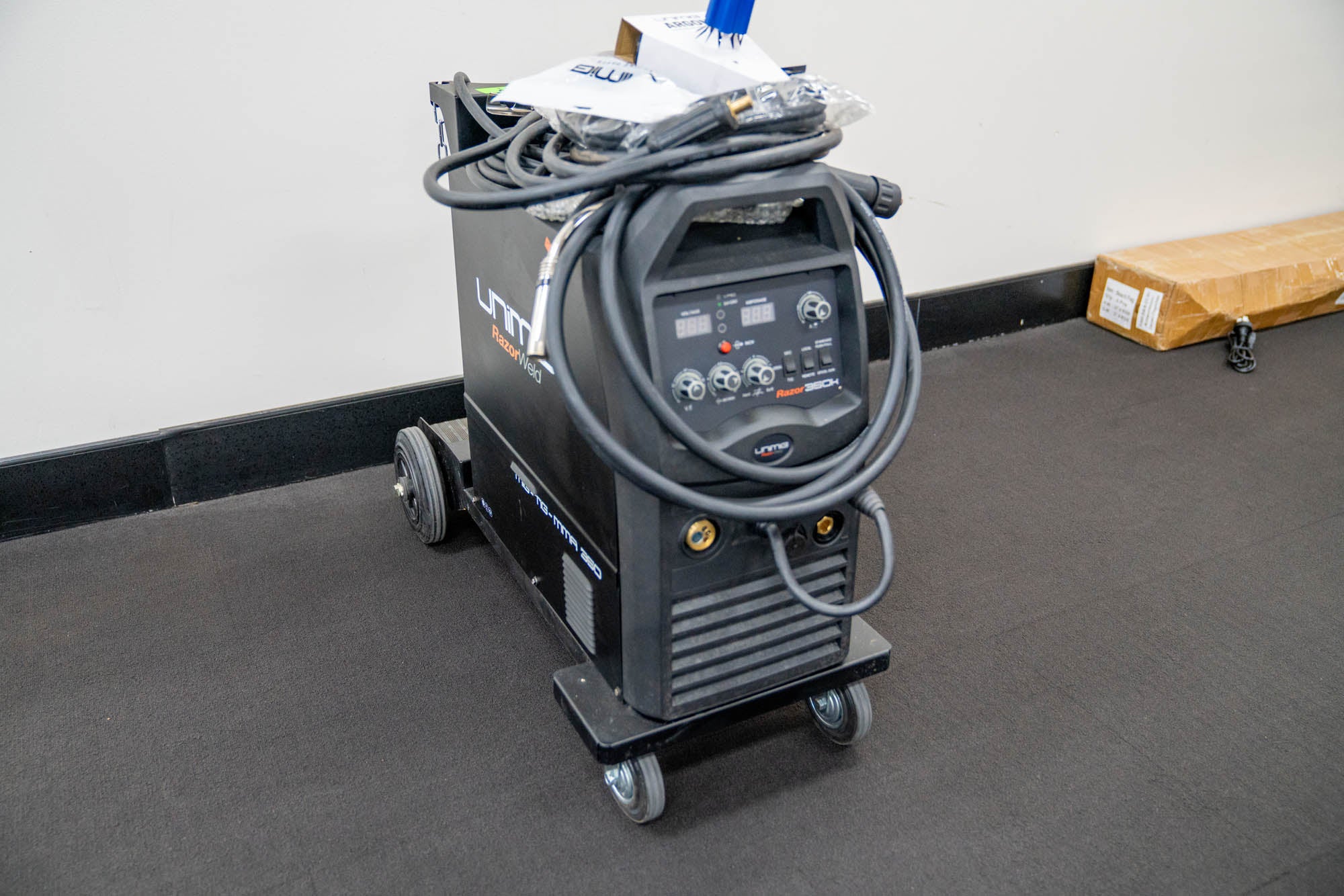

The RAZOR™ 350 Compact is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 350 Compact is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.
The RAZOR™ Compact series is designed for superior performance, offering the highest quality of welds from UNIMIG’s range.
3-in-1 Multi-process
Spool Gun Ready
Push-Pull Gun Ready
4 Geared Wire Drive
PRIMARY INPUT VOLTAGE: 415V Three Phase
SUPPLY PLUG: No plug supplied (20 or 32 AMP Recommended)
RATED INPUT POWER (kVA): 15
Ieff (A): 13.3
RATED OUTPUT: 50A/16.5V - 350A/31.5V
NO LOAD VOLTAGE (V): 64
PROTECTION CLASS: IP21S
INSULATION CLASS: F
POWER FACTOR: 0.93
MINIMUM GENERATOR (kVA): 20
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years): 3
MIG WELDING CURRENT RANGE: 50-350A
"MIG DUTY CYCLE @ 40°C: 40% @ 350A
100% @ 221A"
MIG WIRE SIZE RANGE: 0.6-1.2mm
MIG WIRE SPOOL SIZE: 5kg / 15kg
MIG WELDING THICKNESS RANGE: 1-16mm
DRIVE ROLLER SIZE: 30/22 (x2)
TIG FUNCTION TYPE: DC Lift Arc
TIG WELDING CURRENT RANGE: 20-350A
"TIG DUTY CYCLE @ 40°C: 40% @ 350A
100% @ 221A"
TIG WELDING THICKNESS RANGE: 1-10mm
STICK WELDING CURRENT RANGE: 20-350A
"STICK DUTY CYCLE @ 40°C: 40% @ 350A
100% @ 221A"
STICK ELECTRODE RANGE: 2.5-6.0mm
STICK WELDING THICKNESS RANGE: 2-16mm
DIMENSIONS (mm): 900x400x670mm
WEIGHT (kg): 60kg
WIRE DRIVE: 4 Geared
VRD: Yes
SPOOL GUN CONNECTION: Yes
PUSH / PULL GUN CONNECTION: Yes
BURNBACK ADJUSTMENT: Yes
WIRE INCH: Yes
INDUCTANCE CONTROL: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
