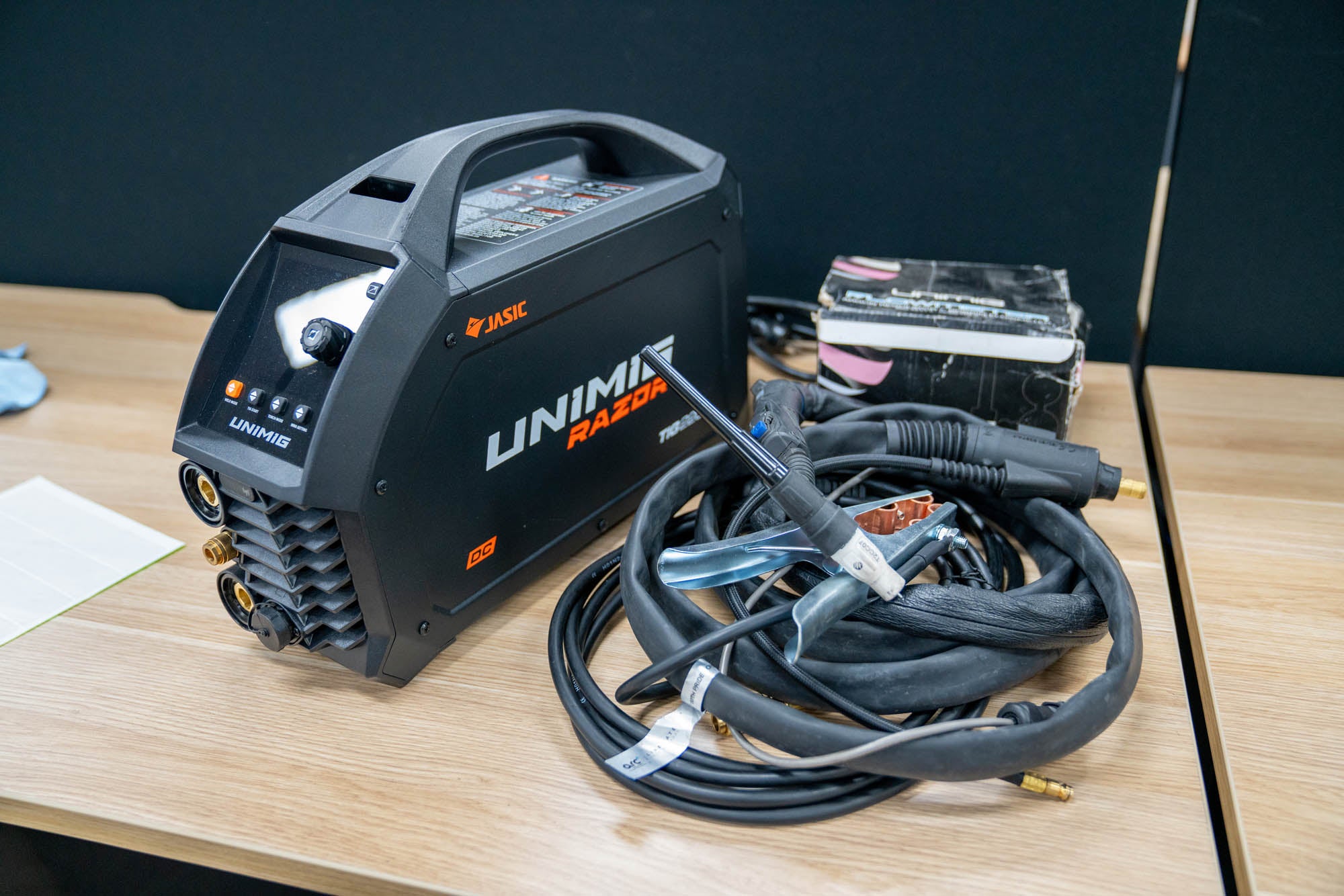

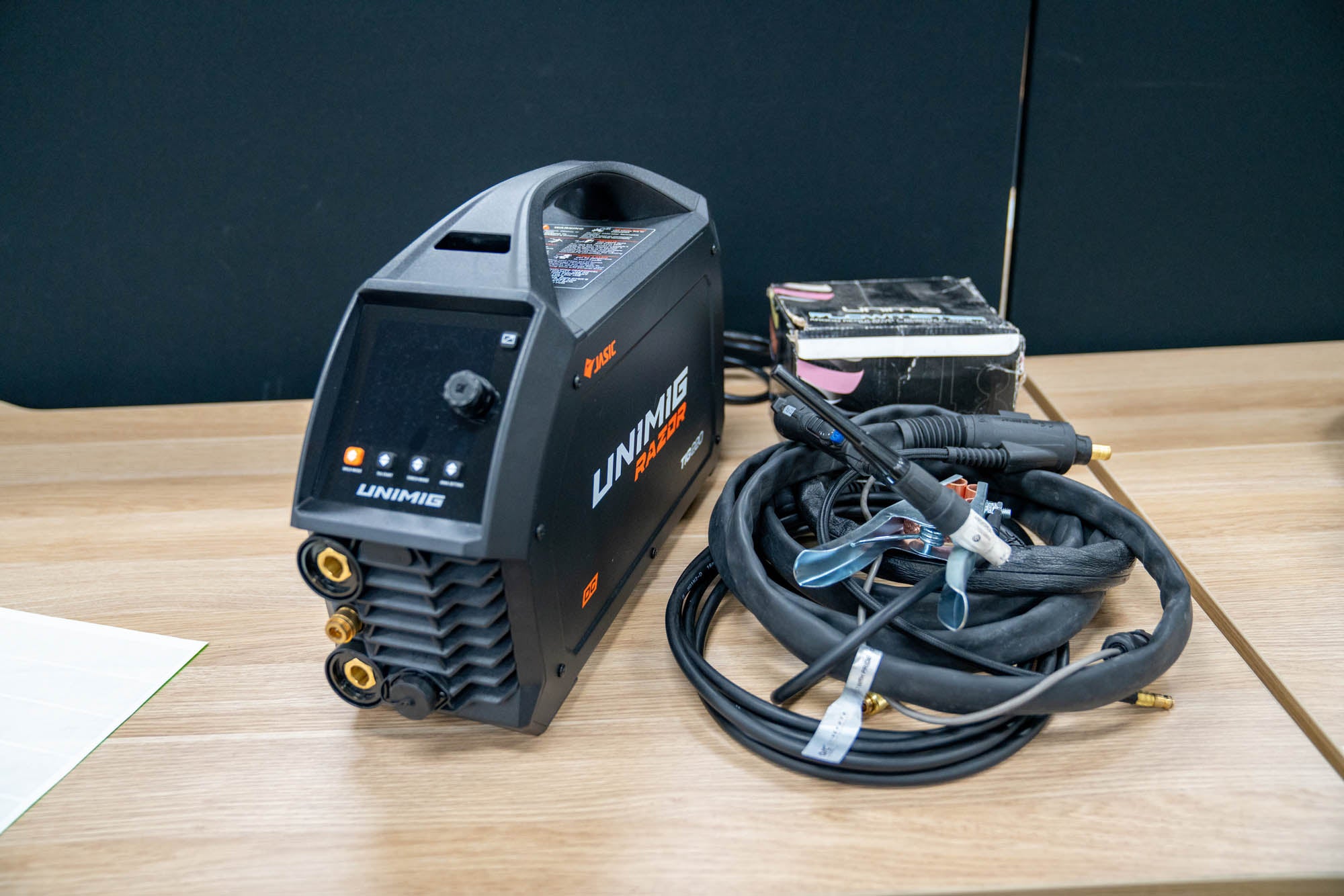

Like new, no electrode holder. Not in original box.
Serial Number: I23043208
Warranty: 5 Years
Condition DescriptionA - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.Refurbished Product DisclaimerPlease read the following information carefully before making a purchase of refurbished products from our website:Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.Each refurbished machine has been repaired by UNIMIG using genuine new parts.Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.Returns Policy: We do not accept change of mind returns for refurbished items.We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications

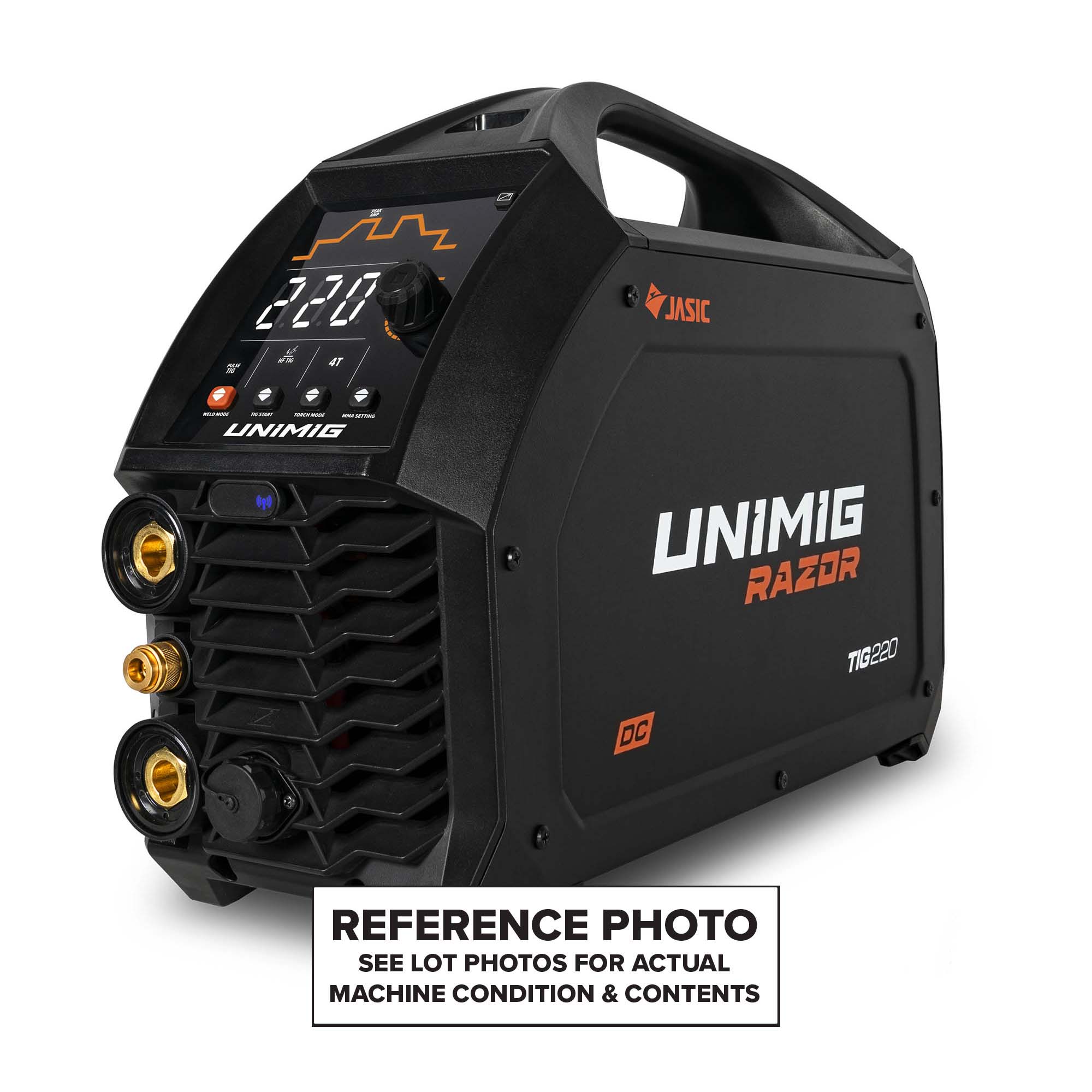

Take complete control of your high-frequency DC TIG welds and get incredible performance from start to finish with this professional-grade welder.
HD Backlit Interface
Power Factor Correction (PFC)
Advanced MMA Features
10A Plug
Optional Remote Control
Smart Fan
Foot Control Ready
High Frequency TIG
Pulse TIG
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 10 AMP
Ieff (A): 9.8
RATED OUTPUT: 5A/10.2V - 220A/18.8V
NO LOAD VOLTAGE (V): 68
PROTECTION CLASS: IP23S
INSULATION CLASS: H
MINIMUM GENERATOR (kVA): 9
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
WELDS: TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
MMA: Mild Steel, Stainless Steel, Cast Iron
WARRANTY (Years): 5
TIG FUNCTION TYPE: DC HF TIG / DC Pulse
TIG WELDING CURRENT RANGE: 5-220A
TIG DUTY CYCLE @ 40°C: 20% @ 220A
60% @ 127A
100% @ 98A
TIG WELDING THICKNESS RANGE: 1-8mm
STICK WELDING CURRENT RANGE: 20-160A
STICK DUTY CYCLE @ 40°C: 20% @ 160A
60% @ 92A
100% @ 72A
STICK ELECTRODE RANGE: 2.5-4.0mm
STICK WELDING THICKNESS RANGE: 2-10mm
DIMENSIONS (mm): 310×150×460
WEIGHT (kg): 8.9
VRD: Yes
REMOTE CONTROL CONNECTION: Yes
FOOT CONTROL CONNECTION: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
