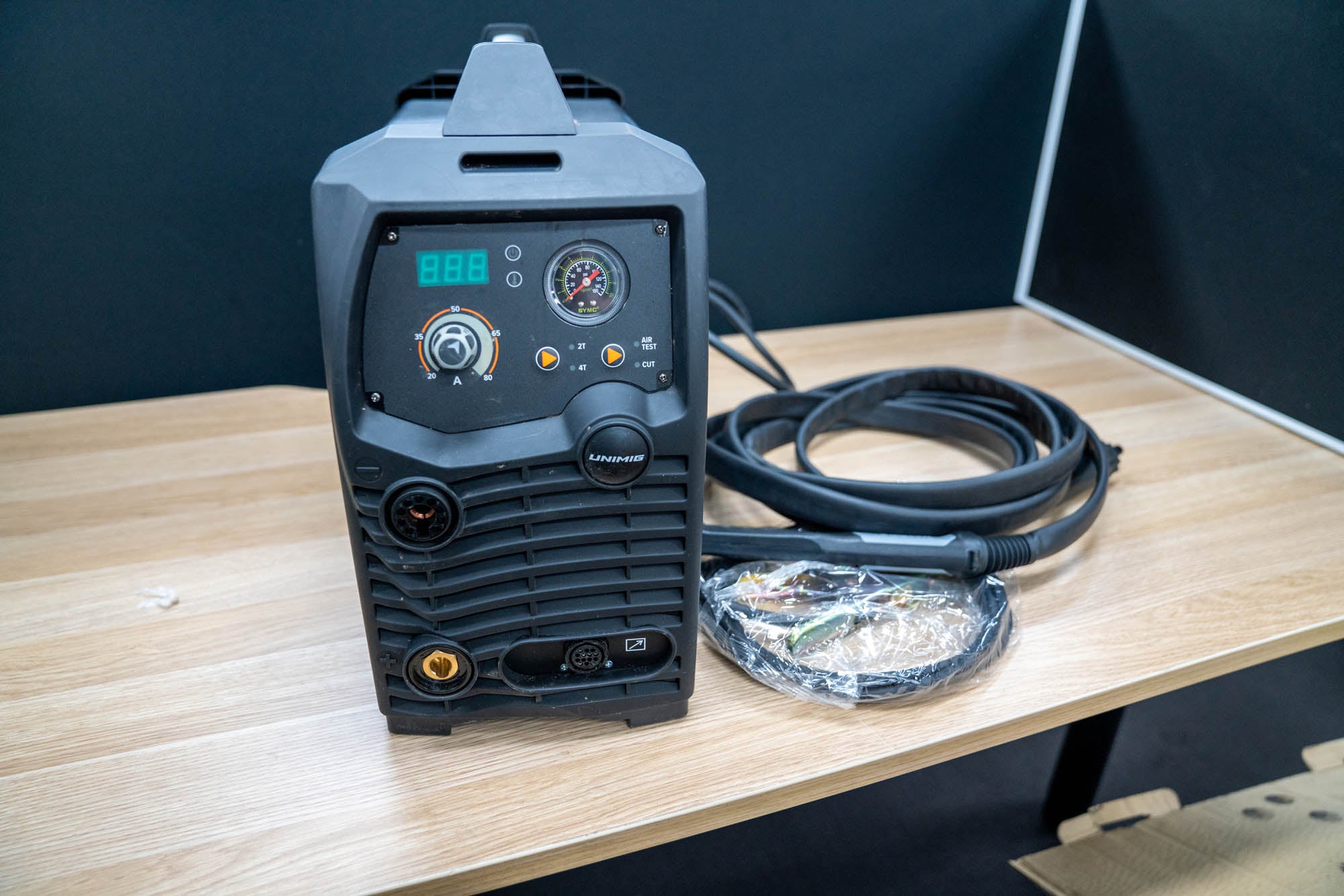

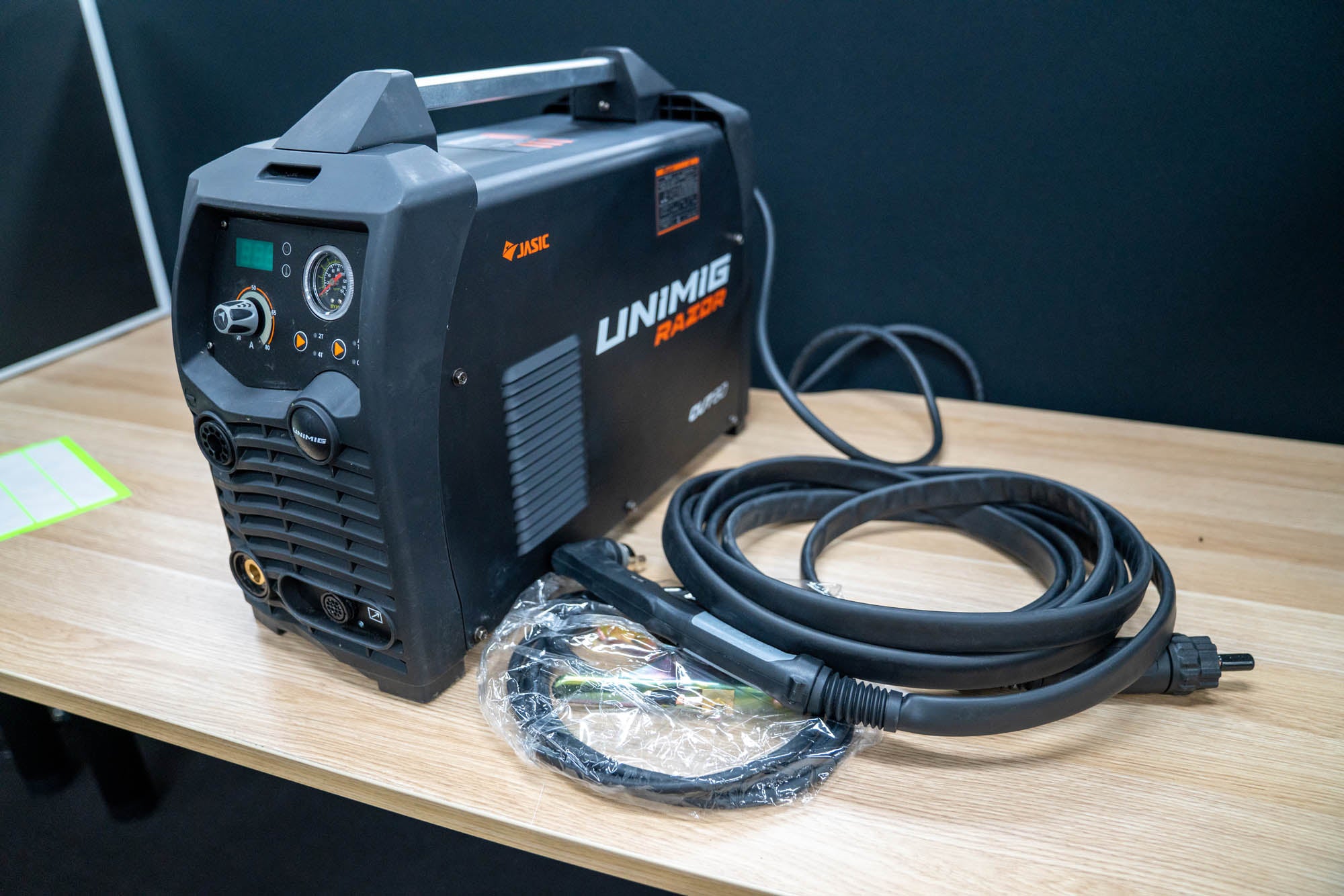

Light wear – unplugged, message us which plug you want
Serial Number: I23025472
Warranty: 3 Years
Condition DescriptionA - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.Refurbished Product DisclaimerPlease read the following information carefully before making a purchase of refurbished products from our website:Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.Each refurbished machine has been repaired by UNIMIG using genuine new parts.Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.Returns Policy: We do not accept change of mind returns for refurbished items.We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications

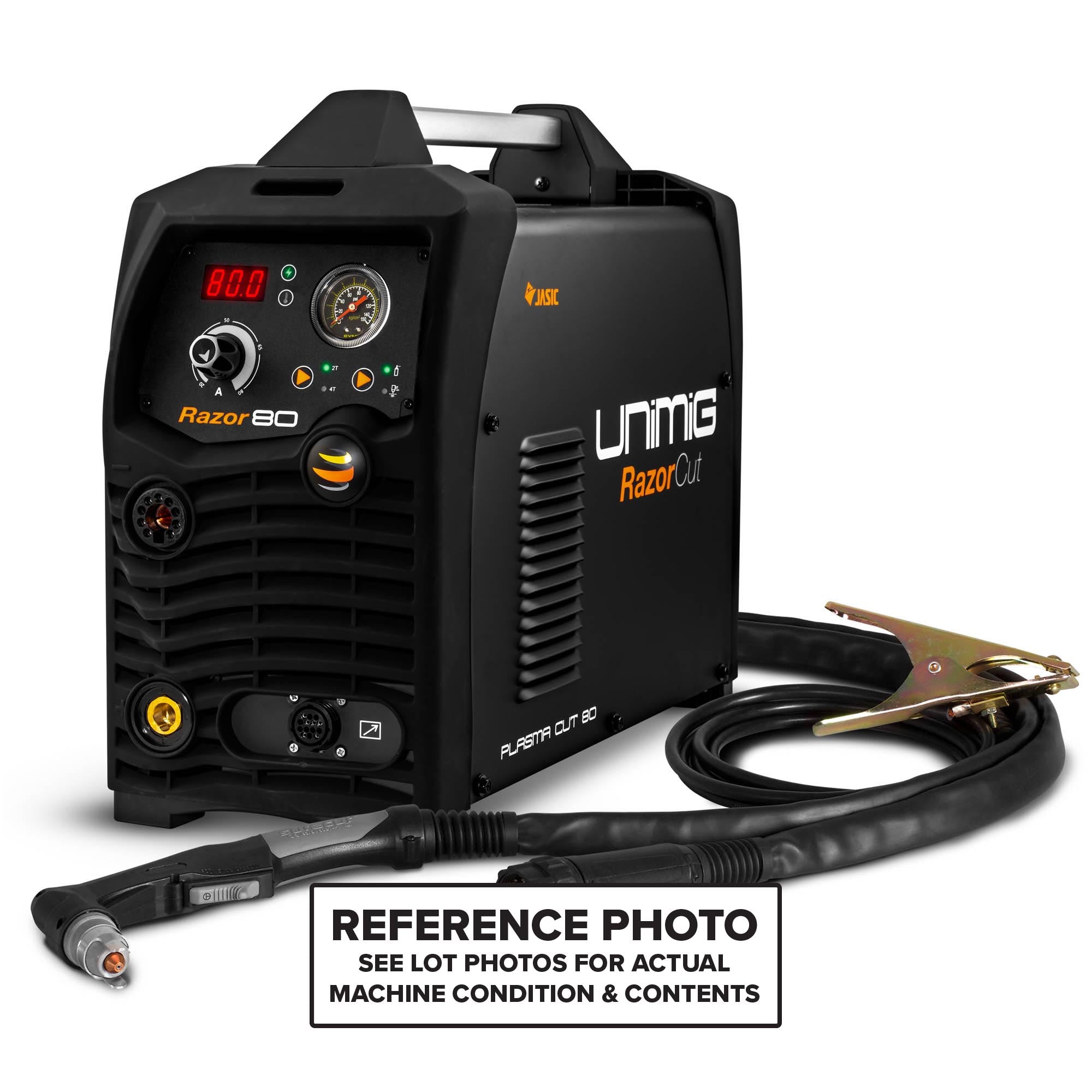

The RAZOR™ CUT 80 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 30mm and severing 35mm, this machine is for the professional needing maximum power from a portable machine.
CNC Connection
Pilot Arc Start
30mm Clean Cut
35mm Severance
2T/4T Torch Controls
Air Test
PRIMARY INPUT VOLTAGE: 415V Three Phase
SUPPLY PLUG: No plug supplied (20 AMP Recommended)
RATED INPUT POWER (kVA): 15
RATED INPUT CURRENT (A): 20
RATED OUTPUT VOLTAGE (V): 112
NO LOAD VOLTAGE (V): 340
Ieff (A): 12.6
AIR FLOW DRAW OFF (L/min): 189
AIR FLOW PRESSURE (Bar): 5.17 (75 psi)
PROTECTION CLASS: IP21S
INSULATION CLASS: F
MINIMUM GENERATOR (kVA): 15
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
WARRANTY (Years): 3
PLASMA CUT CURRENT RANGE: 20-80A
PLASMA CUT DUTY CYCLE @ 40°C?: 40% @ 80A
MILD STEEL CUT THICKNESS: 30mm
MILD STEEL SEVERANCE THICKNESS: 35mm
ALUMINIUM CUT THICKNESS: 16mm
ALUMINIUM SEVERANCE THICKNESS: 20mm
STAINLESS STEEL CUT THICKNESS: 16mm
STAINLESS STEEL SEVERANCE THICKNESS: 20mm
DIMENSIONS (mm): 560x220x415mm
WEIGHT (kg): 16kg
PLASMA ARC START: Pilot Arc
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
