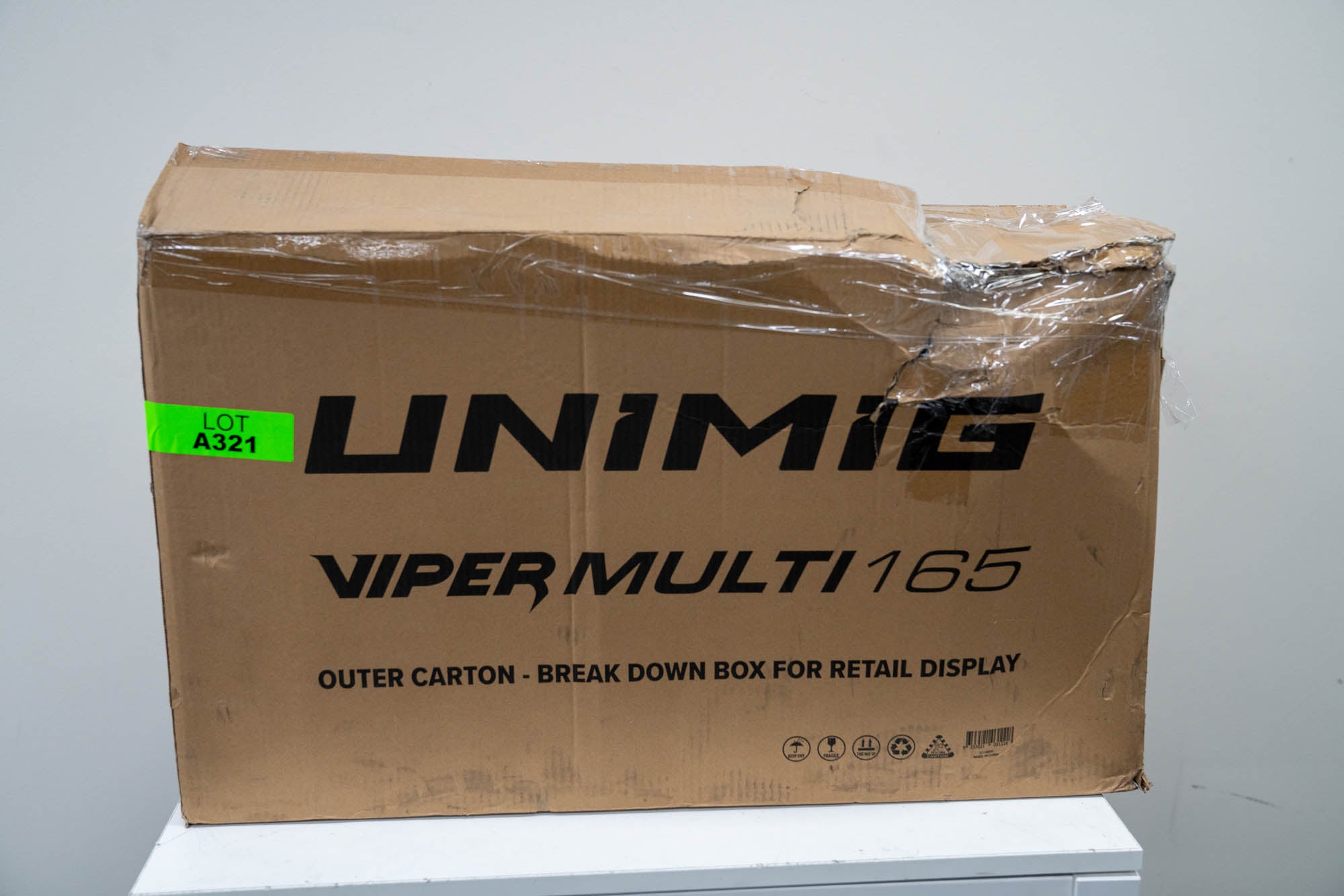

Like new – damaged box
Serial Number: I23027219
Warranty: 2 Years
Condition Description
A - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.
B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.
C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.
D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.
Refurbished Product Disclaimer
Please read the following information carefully before making a purchase of refurbished products from our website:
Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.
Each refurbished machine has been repaired by UNIMIG using genuine new parts.
Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.
Returns Policy: We do not accept change of mind returns for refurbished items.
We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.
Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.
By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications
Get greater control over your welds with the VIPER 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.
Synergic MIG Control
10 AMP Plug
Gas & Gasless MIG
3-in-1 Multi-process
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 10 AMP
Ieff (A): 10
RATED OUTPUT: 30A/15.5V - 165A/22.3V
NO LOAD VOLTAGE (V): 64
PROTECTION CLASS: IP21S
INSULATION CLASS: H
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years): 2
MIG WELDING CURRENT RANGE: 30-165A
MIG DUTY CYCLE @ 40°C: 10% @ 165A, 60% @ 68A, 100% @ 52A
MIG WIRE SIZE RANGE: 0.6-0.9mm
MIG WIRE SPOOL SIZE: 1kg / 5kg
MIG WELDING THICKNESS RANGE: 1-8mm
DRIVE ROLLER SIZE: 30/22
TIG FUNCTION TYPE: DC Lift Arc
TIG WELDING CURRENT RANGE: 20-160A
TIG DUTY CYCLE @ 40°C: 10% @ 160A, 60% @ 65A, 100% @ 50A
TIG WELDING THICKNESS RANGE: 1-6mm
STICK WELDING CURRENT RANGE: 20-140A
STICK DUTY CYCLE @ 40°C: 10% @ 140A, 60% @ 58A, 100% @ 45A
STICK ELECTRODE RANGE: 2.5-3.2mm
STICK WELDING THICKNESS RANGE: 2-8mm
DIMENSIONS (mm): 513x206x391mm
WEIGHT (kg): 9.8kg
VRD: Yes
INDUCTANCE CONTROL: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
