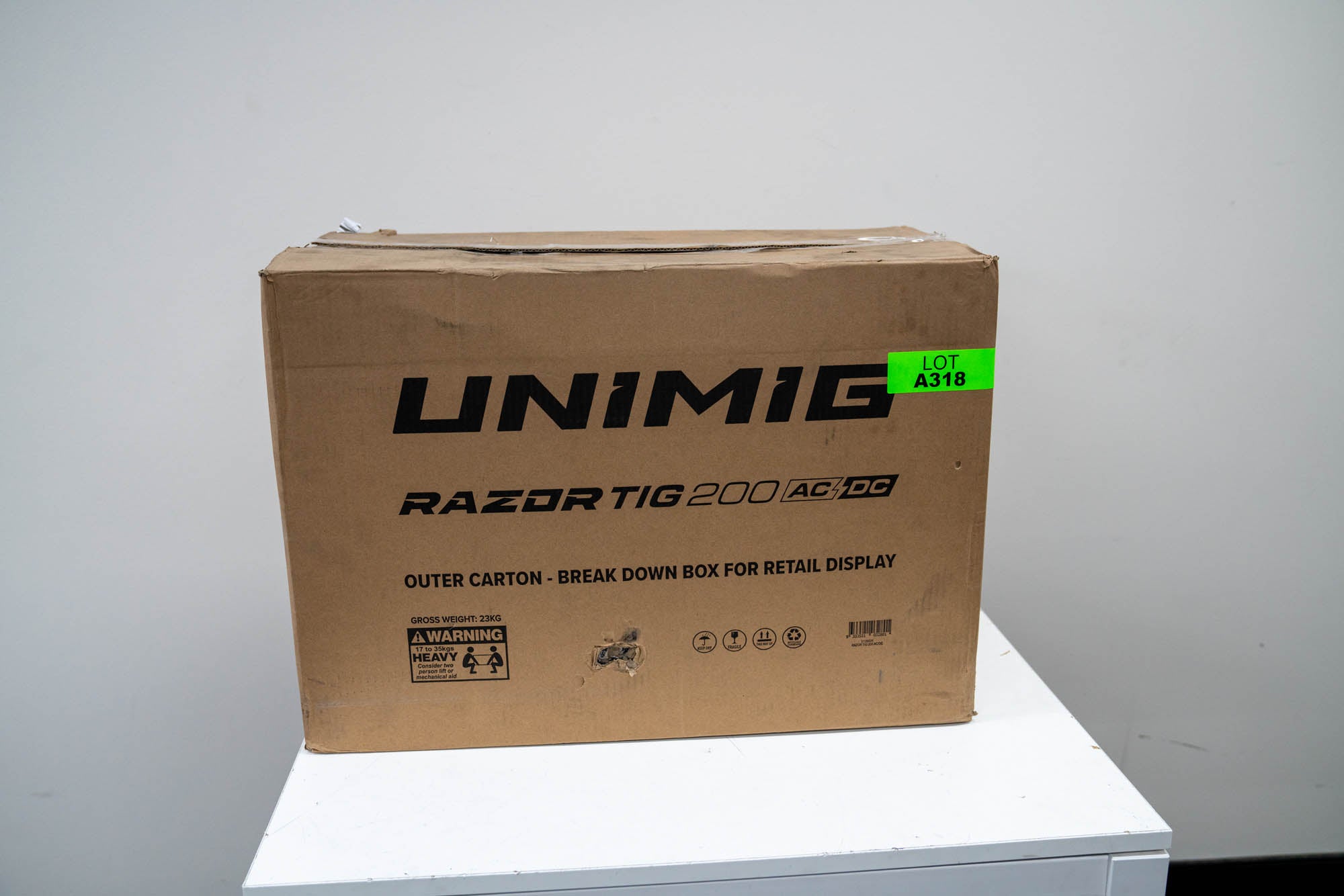

Brand new – damaged box
Serial Number: I24022186
Warranty: 5 Years
Condition Description
A - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.
B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.
C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.
D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.
Refurbished Product Disclaimer
Please read the following information carefully before making a purchase of refurbished products from our website:
Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.
Each refurbished machine has been repaired by UNIMIG using genuine new parts.
Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.
Returns Policy: We do not accept change of mind returns for refurbished items.
We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.
Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.
By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications

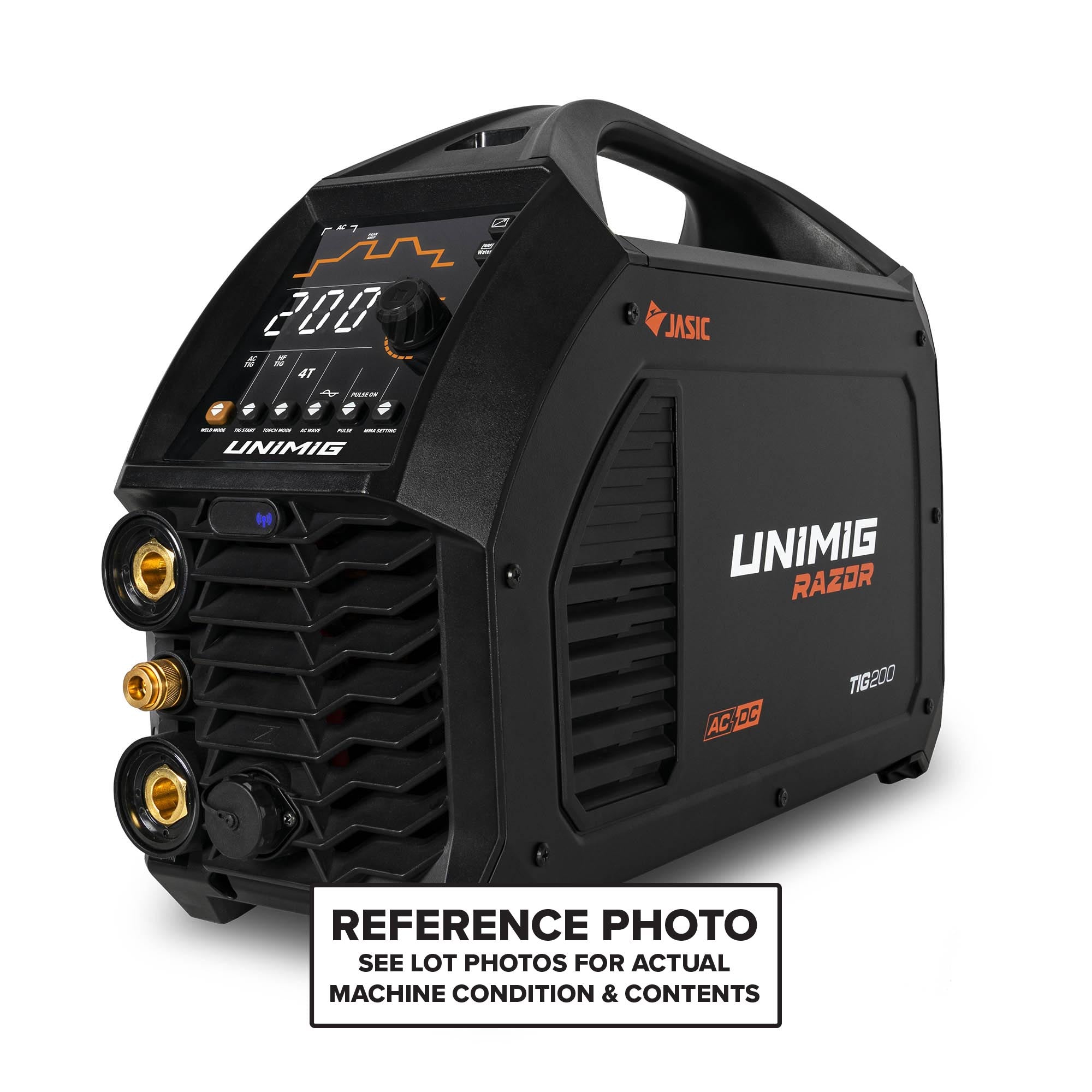

Get incredible results from start to finish with this professional-grade TIG welder.
•Effortlessly weld any metal with the high-frequency AC/DC TIG
•The ultimate combination of AC and DC available with Mixed Arc settings
•Switch your AC welds to suit your needs with the choice of four waveforms
HD Backlit Interface
Power Factor Correction (PFC)
Advanced MMA Features
10A Plug
Smart Fan
High Frequency TIG
Pulse TIG
Multiple AC Waveforms
Mixed AC/DC
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 10 AMP
Ieff (A): 9.5
RATED OUTPUT: 5A/20.8V - 200A/18V
NO LOAD VOLTAGE (V): 65
PROTECTION CLASS: IP23S
INSULATION CLASS: H
MINIMUM GENERATOR (kVA): 9
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
WELDS: TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
MMA: Mild Steel, Stainless Steel, Cast Iron
WARRANTY (Years): 5
TIG FUNCTION TYPE: AC/DC HF TIG & AC/DC Pulse
TIG WELDING CURRENT RANGE: 5-200A
TIG DUTY CYCLE @ 40°C: 20% @ 200A
60% @ 115A
100% @ 90A
TIG WELDING THICKNESS RANGE: 1-8mm
STICK WELDING CURRENT RANGE: 20-160A
STICK DUTY CYCLE @ 40°C: 15% @ 160A
60% @ 80A
100% @ 62A
STICK ELECTRODE RANGE: 2.5-4.0mm
STICK WELDING THICKNESS RANGE: 2-10mm
DIMENSIONS (mm): 500×170×340
WEIGHT (kg): 11.7
VRD: Yes
REMOTE CONTROL CONNECTION: Yes
FOOT CONTROL CONNECTION: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
