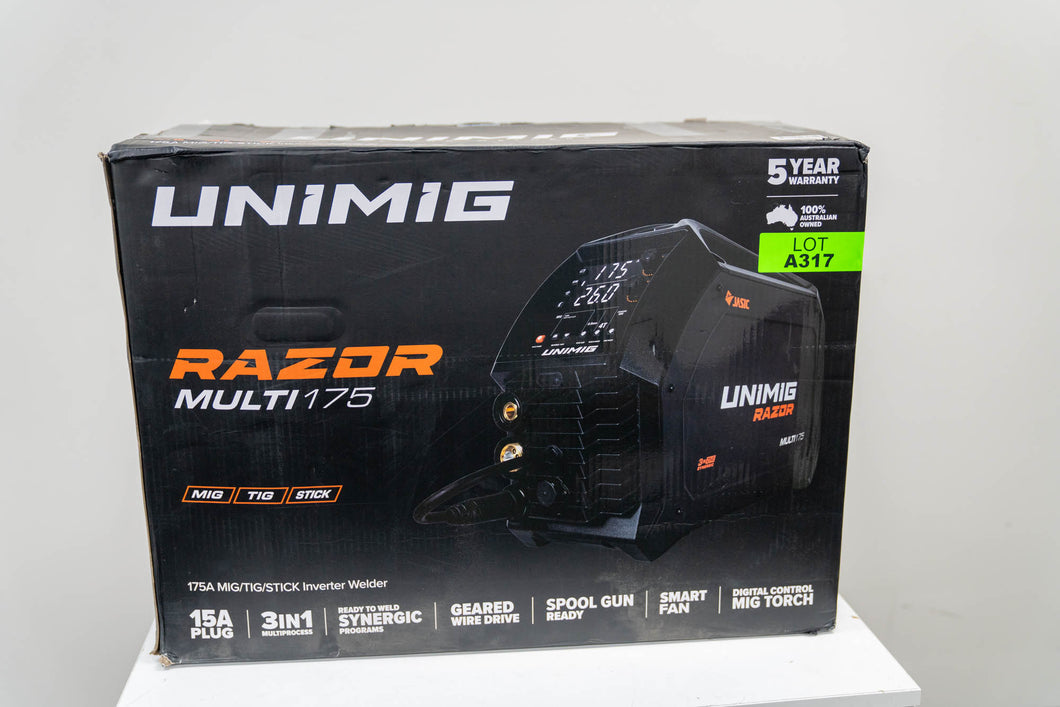

Brand new – damaged box
Serial Number: 12D4M451412510036850011
Warranty: 5 Years
Condition Description
A - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.
B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.
C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.
D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.
Refurbished Product Disclaimer
Please read the following information carefully before making a purchase of refurbished products from our website:
Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.
Each refurbished machine has been repaired by UNIMIG using genuine new parts.
Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.
Returns Policy: We do not accept change of mind returns for refurbished items.
We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.
Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.
By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications
Get a powerful machine in a portable body. This three-in-one welder is perfect for the workshop or the worksite.
HD Backlit Interface
Advanced MMA Features
Optional Remote Control
Smart Fan
Synergic MIG Control
Digital Control MIG Torch
Spool Gun Ready
Gas & Gasless MIG
Geared Wire Drive
Multi-Process Welding
Foot Control Ready
Trigger Controlled DC Lift Arc TIG
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 15 AMP
Ieff (A): 15
RATED OUTPUT: 30A/15.5V - 175A/22.8V
NO LOAD VOLTAGE (V): 60
PROTECTION CLASS: IP23S
INSULATION CLASS: H
MINIMUM GENERATOR (kVA): 11
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
WELDS: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
WARRANTY (Years): 5
MIG WELDING CURRENT RANGE: 30-175A
MIG DUTY CYCLE @ 40°C: 25% @ 175A
60% @ 101A
100% @ 78A
MIG WIRE SIZE RANGE: 0.6-1.0mm
MIG WIRE SPOOL SIZE: 1kg / 5kg
MIG WELDING THICKNESS RANGE: 1-8mm
DRIVE ROLLER SIZE: 30/22
TIG FUNCTION TYPE: DC Lift Arc
TIG WELDING CURRENT RANGE: 5-175A
TIG DUTY CYCLE @ 40°C: 25% @ 175A
60% @ 113A
100% @ 88A
TIG WELDING THICKNESS RANGE: 1-6mm
STICK WELDING CURRENT RANGE: 10-160A
STICK DUTY CYCLE @ 40°C: 20% @ 160A
60% @ 93A
100% @ 72A
STICK ELECTRODE RANGE: 2.5-4.0mm
STICK WELDING THICKNESS RANGE: 2-10mm
DIMENSIONS (mm): 560×220×40
WEIGHT (kg): 15
WIRE DRIVE: Geared
VRD: Yes
SPOOL GUN CONNECTION: Yes
REMOTE CONTROL CONNECTION: Yes
FOOT CONTROL CONNECTION: Yes
BURNBACK ADJUSTMENT: Yes
INDUCTANCE CONTROL: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
