Light wear
Serial Number: 1.0004.0713-UG 1201210057
Warranty: 3 Years
Condition Description
A - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.
B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.
C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.
D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.
Refurbished Product Disclaimer
Please read the following information carefully before making a purchase of refurbished products from our website:
Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.
Each refurbished machine has been repaired by UNIMIG using genuine new parts.
Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.
Returns Policy: We do not accept change of mind returns for refurbished items.
We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.
Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.
By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications

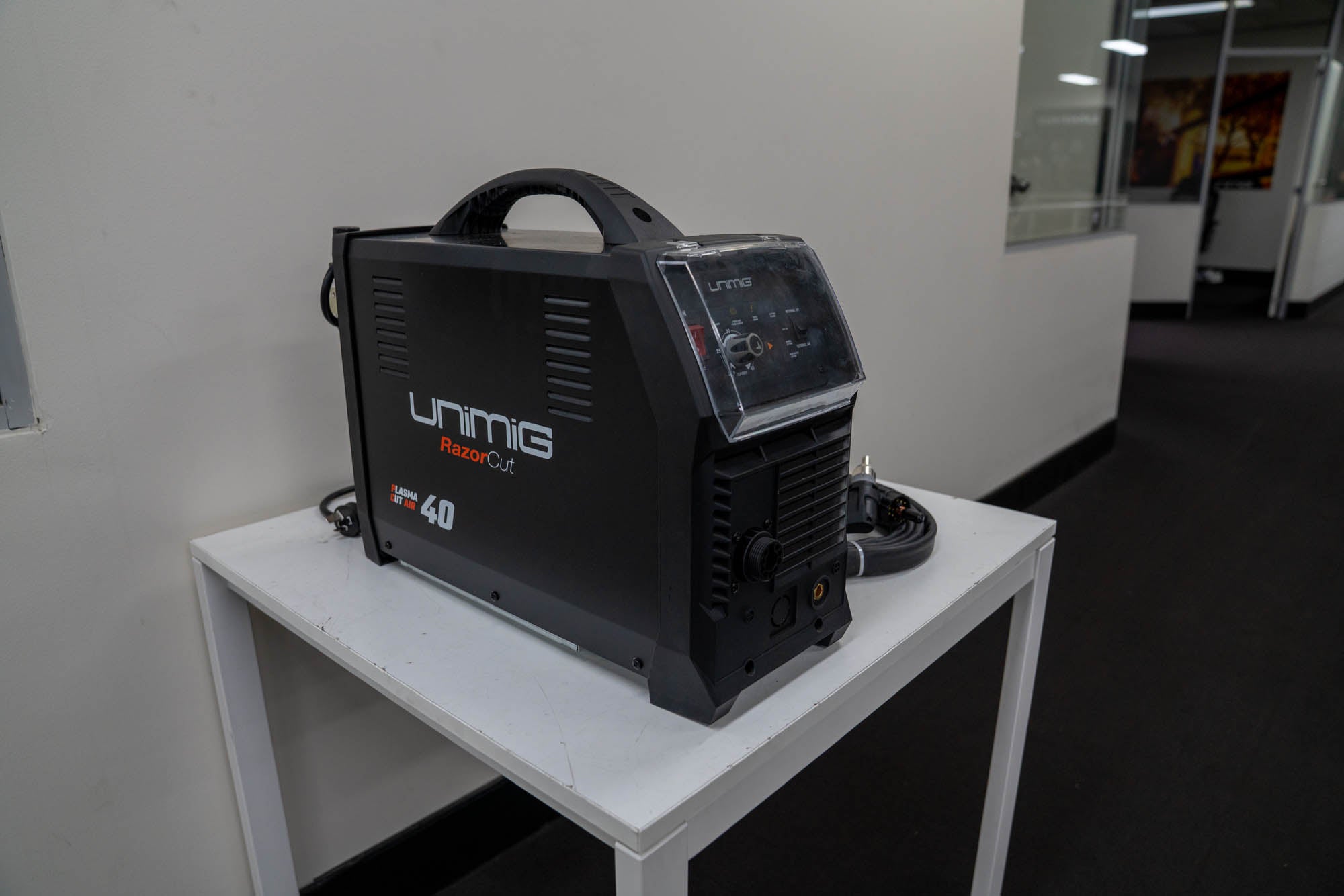

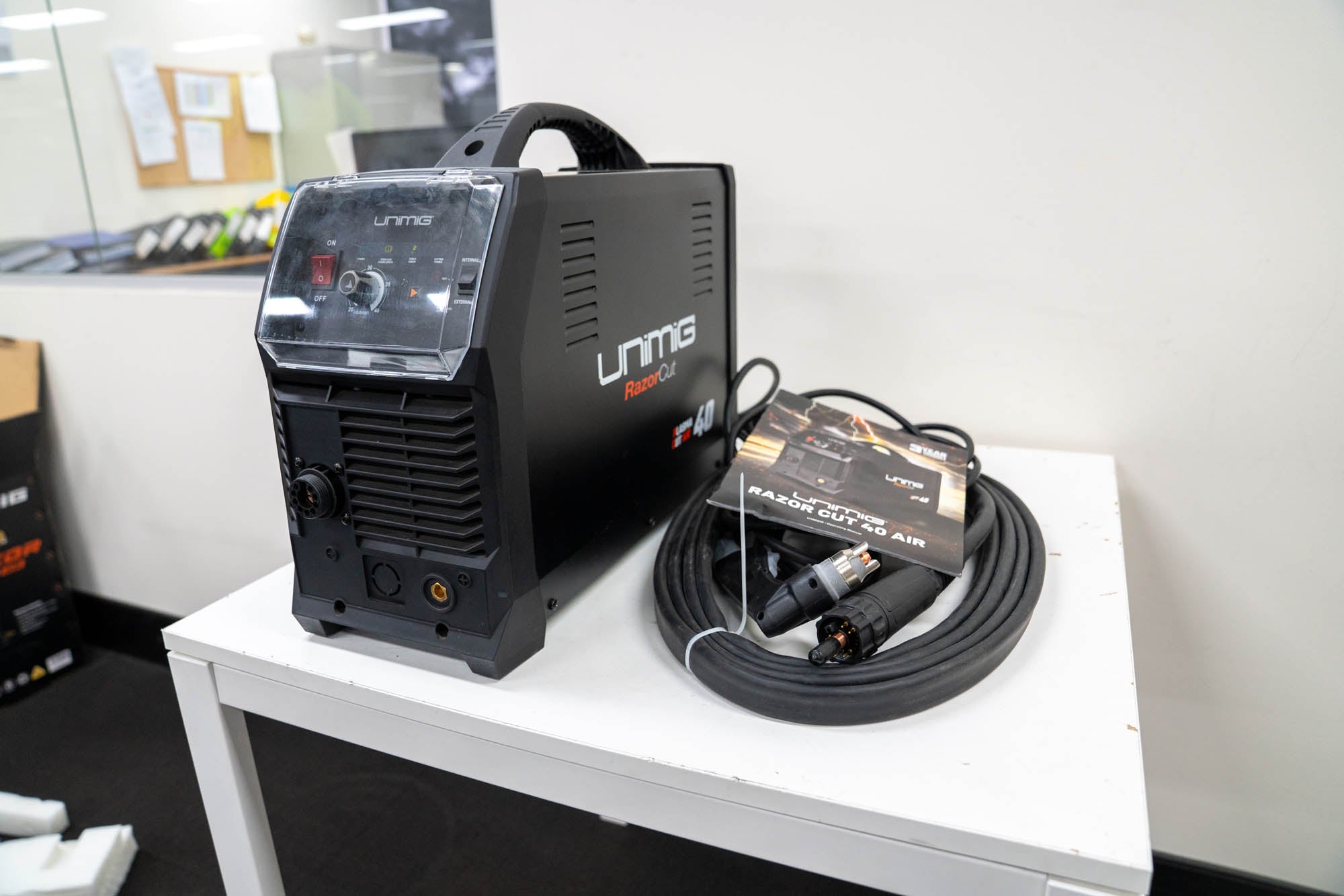

The RAZOR™ CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 40 AIR boasts some serious cutting power with 10mm clean-cut and 12mm severance on the built-in air compressor, and 16mm clean-cut and 20mm severance on an external compressor.
Built-in Air Compressor
15 AMP Plug
Pilot Arc Start
10mm Clean Cut
12mm Severance
Air Test
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 15A
RATED INPUT POWER (kVA): 7.2
RATED INPUT CURRENT (A): 30
RATED OUTPUT VOLTAGE (V): 96V
NO LOAD VOLTAGE (V): 210
Ieff (A): 15
AIR FLOW DRAW OFF (L/min): 120
AIR FLOW PRESSURE (Bar): 5.17 (75 psi)
PROTECTION CLASS: IP21
INSULATION CLASS: H
MINIMUM GENERATOR (kVA): 10
DINSE CONNECTOR: 43763
STANDARD: AS/NZ60974-1
WARRANTY (Years): 3
PLASMA CUT CURRENT RANGE: 20-40A
"PLASMA CUT DUTY CYCLE @ 40°C?: 25% @ 40A
60% @ 26A
100% @ 20A"
MILD STEEL CUT THICKNESS: 12 / 16
MILD STEEL SEVERANCE THICKNESS: 14 / 18
ALUMINIUM CUT THICKNESS: 6 / 8
ALUMINIUM SEVERANCE THICKNESS: 8 / 10
STAINLESS STEEL CUT THICKNESS: 6 / 8
STAINLESS STEEL SEVERANCE THICKNESS: 8 / 10
DIMENSIONS (mm): 610x215x420mm
WEIGHT (kg): 18kg
PLASMA ARC START: Pilot Arc
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
