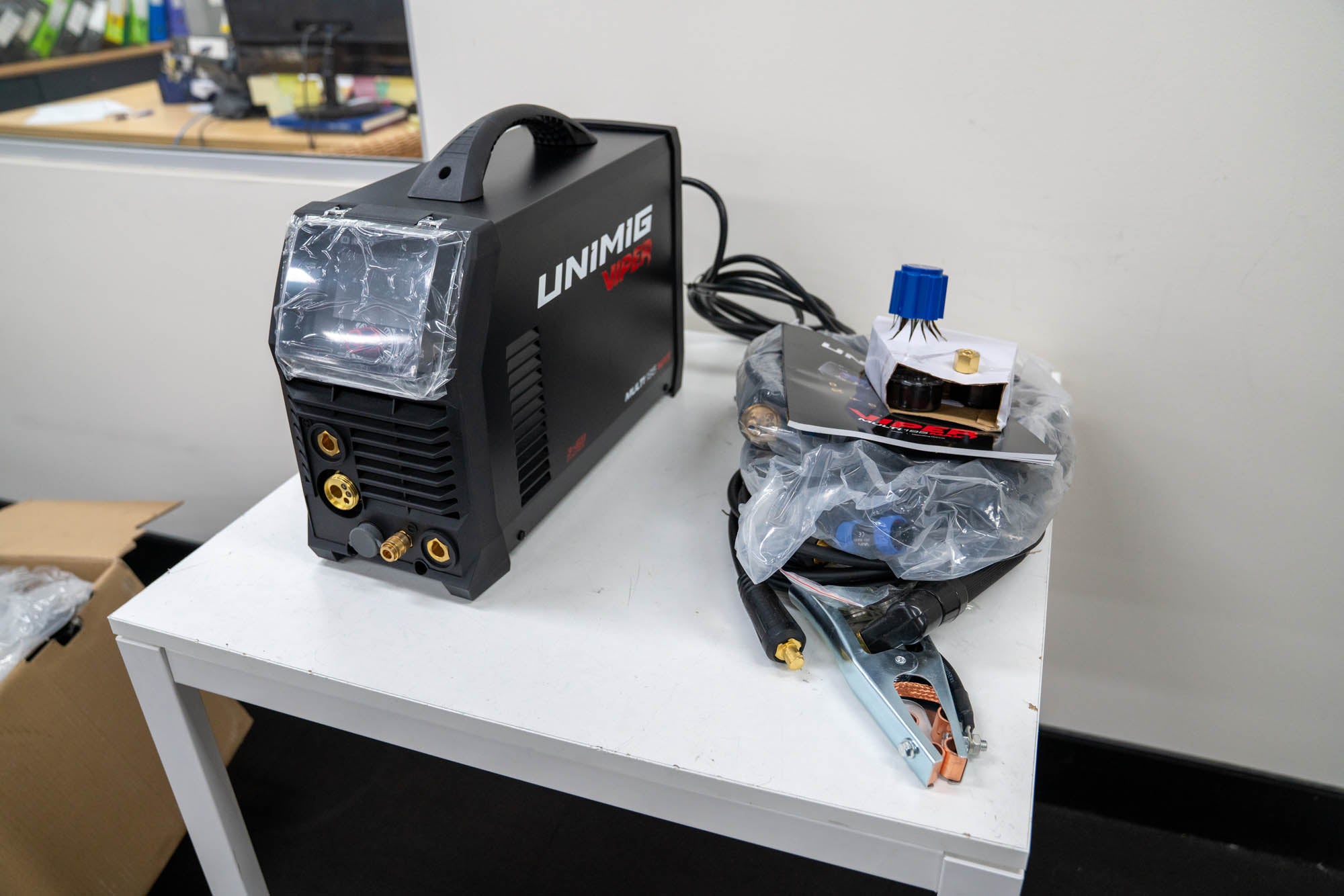

Like new
Serial Number: 1.0003.0557-UG 12407220222
Warranty: 3 Years
Condition Description
A - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.
B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.
C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.
D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.
Refurbished Product Disclaimer
Please read the following information carefully before making a purchase of refurbished products from our website:
Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.
Each refurbished machine has been repaired by UNIMIG using genuine new parts.
Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.
Returns Policy: We do not accept change of mind returns for refurbished items.
We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.
Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.
By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications
The VIPER MULTI 195 MAX is now out, the latest addition to our VIPER range. This 3-in-1 machine has been packed full of features so it can do just about everything, MIG, DC TIG and STICK, and all on a 10A plug. It comes loaded with complete, comprehensive synergic MIG and TIG programs, so setting up for your welds has never been quicker or easier.
Machine Features
10A Plug
Plug in and play. The 10A power plug can be used on any domestic outlet, so it’s perfect for the DIY home handyman or the professional welder looking to take it anywhere.
Smart Fan
The Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
4.0” Colour LCD Screen
The intuitive screen controls and next-generation user interface make changing your settings easier than ever.
Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
IP21 Rating
Rated IP21, so it’s protected from touch by fingers and objects greater than 12mm, and water spray from a vertical direction.
Dual Gas Input
Fitted with separate MIG and TIG gas inputs, allowing you to switch processes quicker than ever before.
Job Memory
The job memory function allows you to enter and store weld parameter settings under job numbers. Weld parameters can be further adjusted and stored as required. A total of 20 jobs can be memorised and stored for recall.
Foot Control Ready
This machine supports the connection of both a wired or wireless foot control for extra versatility and convenience while welding. You can adjust your amperage hands-free to avoid disrupting your torch movement, and the wireless option reduces cables and adds greater manoeuvrability.
MIG Features
MIG Smart-Set™
Setting up for a weld has never been easier, just set your joint type, filler wire, gas mixture, wire diameter, and material thickness and you’re ready to weld!
Complete MIG Weld Cycle Control
Get complete control over your MIG welds with a full set of adjustable parameters, such as pre- and post-gas flow, arc ignition speed, and burnback.
Gas-shielded & Gasless Wires
Capable of running both gas-shielded and gasless MIG wire, you can to tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered.
Spool Gun Ready
Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
Crater Fill
End your welds as strong as they started. The Arc End feature ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.
Inductance Control
Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics.
Digital Geared Wire Drive
Experience unparalleled accuracy with our all-new Digital Geared Wire Drive system. Designed to sustain a consistent arc in varying conditions and with different wire types, it ensures an accurate wire feed speed. With this system, achieving precision in every welding task is effortless.
Arc Start
Get the smoothest arc starts possible with the Arc Start dual function. Set above 100% and the Hot Start gives you a boost in current at the start of your weld, eliminating issues with starting on cold metal, and makes welding on thicker materials easier. Set below 100% and Soft Start helps with edge arc ignition by starting at a lower current and ramping up when welding away from the edge.
TIG Features
TIG Smart-Set™
The easiest way to set up for a TIG weld, simply set your material, joint type, tungsten diameter, plate thickness, and gas mixture and you’re good to go!
Pulse TIG
Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding.
DC High-Frequency TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
Heat Control Trigger (HCT) Mode
Heat Control Trigger Mode lets you set a base current, which you can switch to at any time during a weld by pressing the trigger button. Heat Control Trigger Mode is great for manual heat input control as you go.
MMA Features
VOLTAGE REDUCTION DEVICE (VRD)
Reduces Open Circuit Voltage (OCV), protecting yourself and the machine.
ARC FORCE
Arc Force helps to keep the arc stabilised throughout the weld, by detecting any short circuits and increasing the peak current to prevent the arc cutting out or electrode sticking.
HOT START
Hot Start increases the stability of your arc ignition, and prevents a lack of fusion at the start of the weld.
ANTI STICK
Anti-stick prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will shut off and unstick the electrode.
PULSE MMA (STICK)
Pulse MMA (STICK) welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion.
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 10 AMP
Ieff (A): 8.9
RATED OUTPUT: 25A/15V - 195A/23.8V
NO LOAD VOLTAGE (V): 67
PROTECTION CLASS: IP21
INSULATION CLASS: H
MINIMUM GENERATOR (kVA): 8.5
DINSE CONNECTOR: 35/50
STANDARD: AS/NZS 60974.1
WELDS: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
WARRANTY (Years): 3
MIG WELDING CURRENT RANGE: 25-195A
MIG DUTY CYCLE @ 40°C: 15% @ 195A
60% @ 98A
100% @ 76A
MIG WIRE SPOOL SIZE: 1kg / 5kg
MIG WELDING THICKNESS RANGE: 1-8mm
DRIVE ROLLER SIZE: 30/22
TIG FUNCTION TYPE: DC High-Frequency
TIG WELDING CURRENT RANGE: 5-195A
TIG DUTY CYCLE @ 40°C: 30% @ 195A
60% @ 138A
100% @ 107A
TIG WELDING THICKNESS RANGE: 1-8mm
STICK WELDING CURRENT RANGE: 5-195A
STICK DUTY CYCLE @ 40°C: 15% @ 195A
60% @ 98A
100% @ 76A
STICK ELECTRODE RANGE: 2.5-4.0mm
STICK WELDING THICKNESS RANGE: 2-10mm
DIMENSIONS (mm): 470×190×350mm
WEIGHT (kg): 11.8mm
WIRE DRIVE: Geared
VRD: Yes
SPOOL GUN CONNECTION: Yes
FOOT CONTROL CONNECTION: Yes
BURNBACK ADJUSTMENT: Yes
WIRE INCH: Yes
THERMAL OVERLOAD PROTECTION: Yes
