Brand new – box damaged
Serial Number:
Warranty: 3 Years
Condition Description
A - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.
B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.
C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.
D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.
Refurbished Product Disclaimer
Please read the following information carefully before making a purchase of refurbished products from our website:
Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.
Each refurbished machine has been repaired by UNIMIG using genuine new parts.
Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.
Returns Policy: We do not accept change of mind returns for refurbished items.
We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.
Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.
By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications

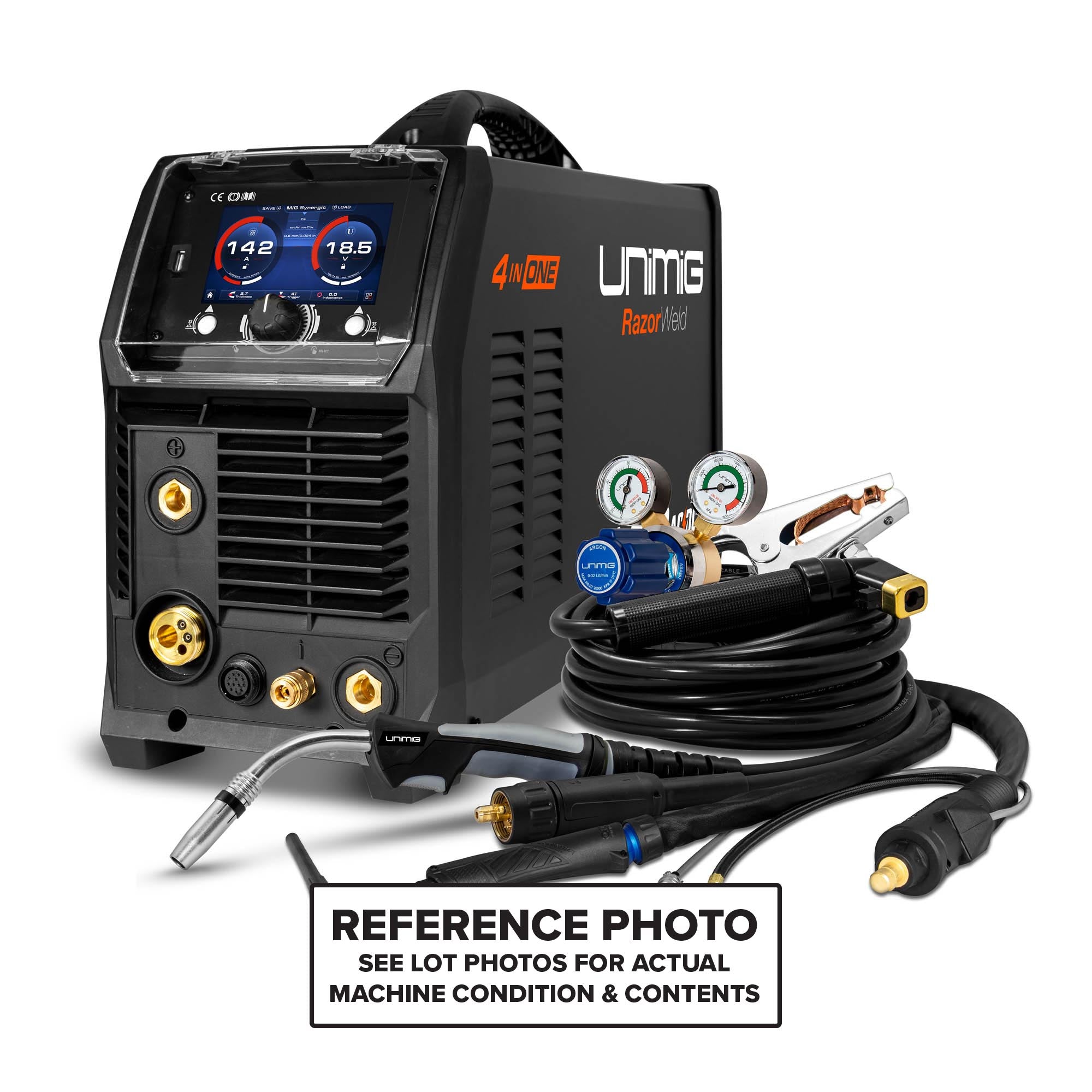

Our brand new RAZOR MULTI 230 AC/DC 4-in-1 is here. As the latest and greatest addition to our RAZOR line, this machine can do any kind of welding you need it to. MIG, High-Frequency AC & DC TIG, as well as STICK, no matter what you’ve got planned, the RAZOR MULTI 230 AC/DC can do it.
5” Colour LCD Screen
Gas-shielded & Gasless MIG
AC/DC High Frequency TIG
Pulse MMA
Power Factor Correction (PFC)
SPOOL GUN READY
Wireless Foot Control Ready
Hot Start & Crater Fill
Geared Wire Drive
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 15 AMP
Ieff (A): 9.4 / 15
"RATED OUTPUT: 25A/15.3V-200A/24V (10A)
25A/15.3V-230A/25.5V (15A)"
PROTECTION CLASS: IP21
INSULATION CLASS: H
MINIMUM GENERATOR (kVA): 8.5 (10A) / 10 (15A)
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years): 3
MIG SPECIFICATIONS:
MIG WELDING CURRENT RANGE: 25-200A (10A) / 25-230A (15A)
"MIG DUTY CYCLE @ 40°C: 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) /
25% @ 230A, 60% @ 187A, 100% @ 145A (15A)"
MIG WIRE SIZE RANGE: 0.6-1.0mm
MIG WIRE SPOOL SIZE: 1kg / 5kg
MIG WELDING THICKNESS RANGE: 1-10mm
DRIVE ROLLER SIZE: 30/22
:
TIG SPECIFICATIONS:
TIG FUNCTION TYPE: AC/DC High-Frequency
TIG WELDING CURRENT RANGE: 10-200A
TIG DUTY CYCLE @ 40°C: 25% @ 200A, 60% @ 130A, 100% @ 100A (10/15A)
TIG WELDING THICKNESS RANGE: 1-8mm
:
STICK SPECIFICATIONS:
STICK WELDING CURRENT RANGE: 10-200A
"STICK DUTY CYCLE @ 40°C: 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) /
25% @ 200A, 60% @ 130A, 100% @ 100A (15A)"
STICK ELECTRODE RANGE: 2.5-4.0mm
STICK WELDING THICKNESS RANGE: 2-12mm
SIZE & WEIGHT:
DIMENSIONS (mm): 660x210x330mm
WEIGHT (kg): 20kg
MACHINE FEATURES:
WIRE DRIVE: Geared
VRD: Yes
SYNERGIC PROGRAMS: Yes
BURNBACK ADJUSTMENT: Yes
THERMAL OVERLOAD PROTECTION: Yes
POWER FACTOR CORRECTION (PFC): Yes
