Light wear
Condition Description
A - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.
B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.
C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.
D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.
Refurbished Product Disclaimer
Please read the following information carefully before making a purchase of refurbished products from our website:
Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.
Each refurbished machine has been repaired by UNIMIG using genuine new parts.
Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.
Returns Policy: We do not accept change of mind returns for refurbished items.

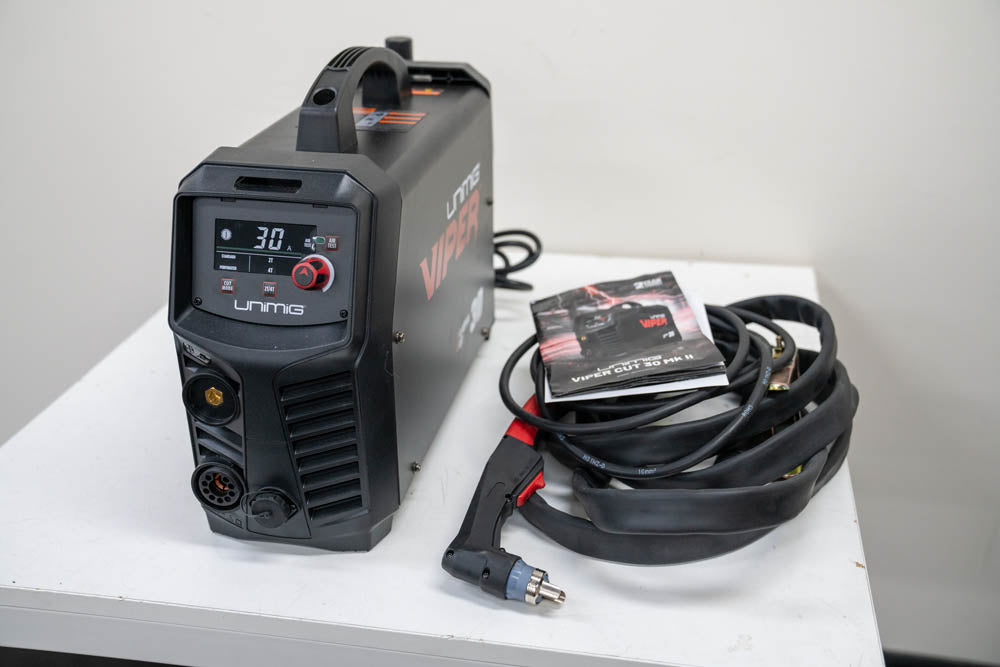

We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.
Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.
By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications
Serial Number: I22018559
Warranty: 2 Years

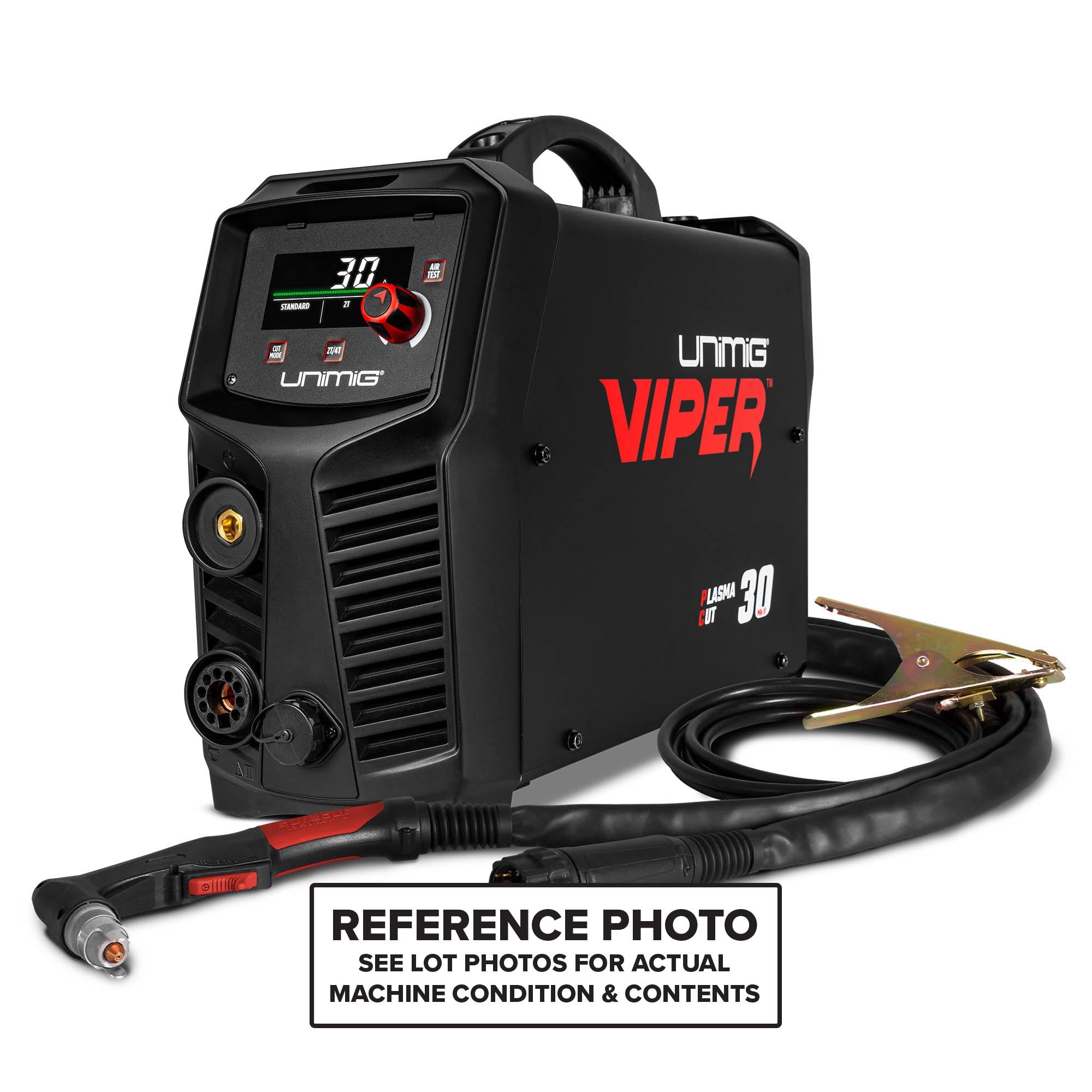

Cut anything, anywhere. Whether it’s a solid or perforated metal, you’ll get a clean cut up to
12mm thick. Now with the addition of a CNC connection, the Viper Cut 30 Mk II can handle
anything you throw at it.
CNC Connection
Perforated Cutting Mode
10 AMP Plug
Pilot Arc Start
12mm Clean Cut
14mm Severance
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 10A
RATED INPUT POWER (kVA): 7.5
RATED OUTPUT VOLTAGE (V): 92
Ieff (A): 10
AIR FLOW DRAW OFF (L/min): 170
AIR FLOW PRESSURE (Bar): 5-6 (70-87 psi)
PROTECTION CLASS: IP21S
INSULATION CLASS: F
MINIMUM GENERATOR (kVA): 8
DINSE CONNECTOR: 45931
STANDARD: AS/NZ60974-1
WARRANTY (Years): 2
PLASMA CUT CURRENT RANGE: 20-30A
PLASMA CUT DUTY CYCLE @ 40°C?: 15% @ 30A, 60% @ 23A, 100% @ 20A
MILD STEEL CUT THICKNESS: 12mm
MILD STEEL SEVERANCE THICKNESS: 14mm
ALUMINIUM CUT THICKNESS: 6mm
ALUMINIUM SEVERANCE THICKNESS: 8mm
STAINLESS STEEL CUT THICKNESS: 6mm
STAINLESS STEEL SEVERANCE THICKNESS: 8mm
DIMENSIONS (mm): 534x166x343mm
WEIGHT (kg): 8.5kg
PLASMA ARC START: Pilot Arc
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
