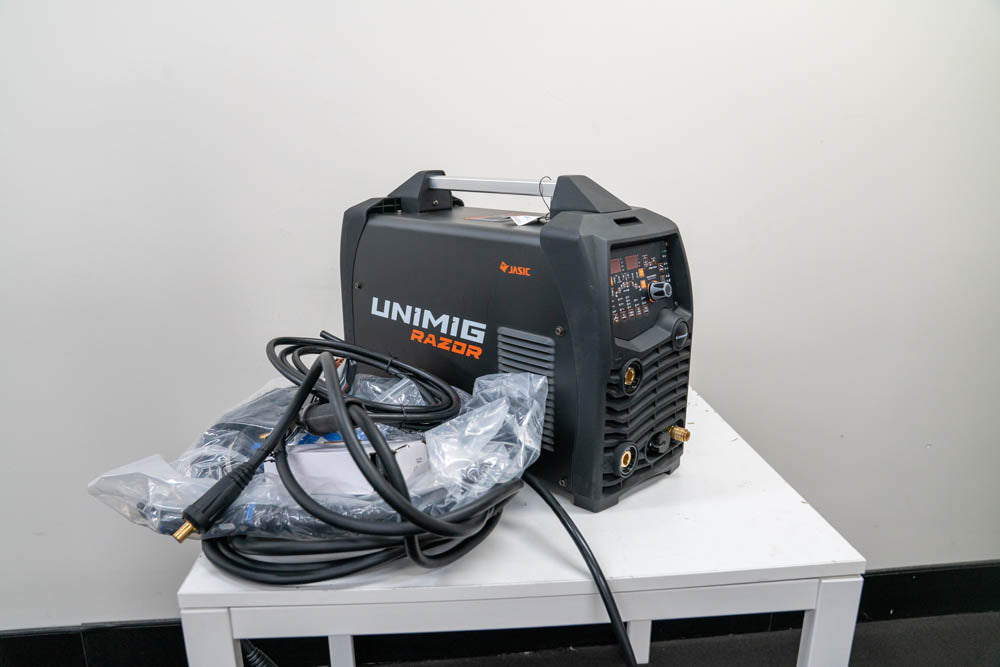

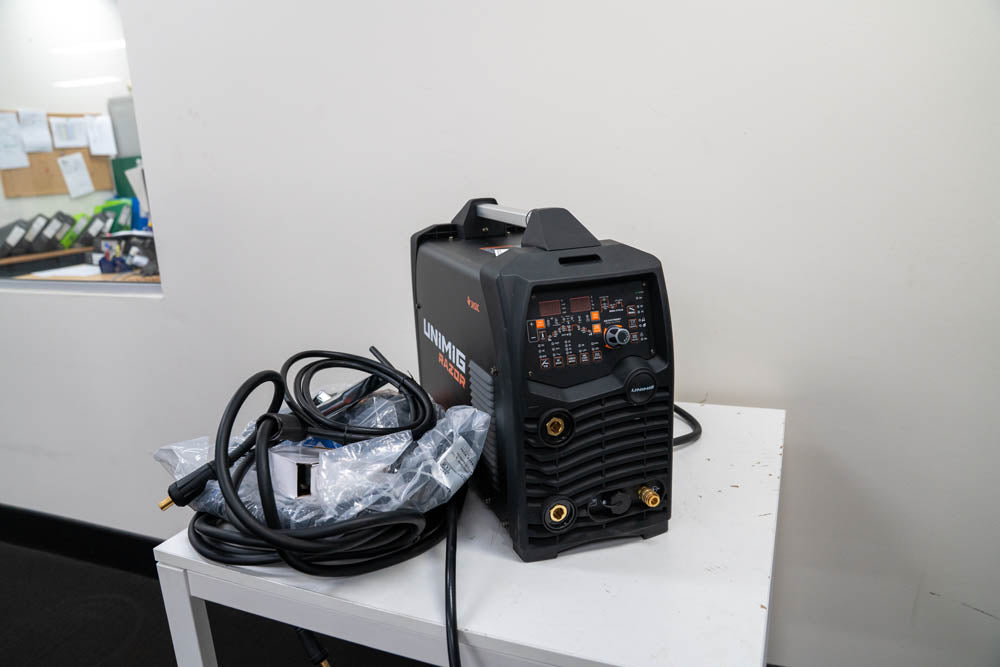

Light wear – no original packaging, includes three-phase 32A plug
Condition Description
A - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.
B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.
C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.
D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.
Refurbished Product Disclaimer
Please read the following information carefully before making a purchase of refurbished products from our website:
Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.
Each refurbished machine has been repaired by UNIMIG using genuine new parts.
Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.
Returns Policy: We do not accept change of mind returns for refurbished items.
We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.
Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.
By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications
Serial Number: I24016640
Warranty: 3 Years
The RAZOR™ 320 AC/DC gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish. This Three-Phase machine features Square, Trapezoidal and Sine AC output waveforms, as well as MIX ARC AC/DC functions.
The RAZOR™ 320 AC/DC is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminium, stainless steel fabrication, marine and industrial engineering welding situations.
The all-new ARC TORCHOLOGY T3 TIG Torch comes standard with the RAZOR™ 320 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control and Water Cooler can also be plugged into the machine for even more versatility and power.
AC/DC High-Frequency TIG
Pulse TIG Function
AC TIG Waveforms
- Square, Trapezoidal, Sine
Mixed Arc AC/DC
Foot Control Ready
2T/4T Torch Modes
Remote Control Module
PRIMARY INPUT VOLTAGE: 415V Three Phase
SUPPLY PLUG: No plug supplied (20 AMP Recommended)
RATED INPUT POWER (kVA): 9
Ieff (A): 10
RATED OUTPUT: 5-315A
NO LOAD VOLTAGE (V): 9-73
PROTECTION CLASS: IP21S
INSULATION CLASS: F
POWER FACTOR: 0.7
MINIMUM GENERATOR (kVA): 10
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1, AS/NZ60974-10
WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
WARRANTY (Years): 3
TIG FUNCTION TYPE: AC/DC HF TIG & AC/DC Pulse
TIG WELDING CURRENT RANGE: 5-315A
TIG DUTY CYCLE @ 40°C: 30% @ 315A
TIG WELDING THICKNESS RANGE: 1-16mm
STICK WELDING CURRENT RANGE: 10-270A
STICK DUTY CYCLE @ 40°C: 30% @ 270A
STICK ELECTRODE RANGE: 2.5-4.0mm
STICK WELDING THICKNESS RANGE: 2-16mm
ARC FORCE: 0-40
DIMENSIONS (mm): 566x223.5x405mm
WEIGHT (kg): 25.5kg
VRD: Yes
FOOT CONTROL CONNECTION: UTJRFC-4
CRATER CURRENT CONTROL: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
