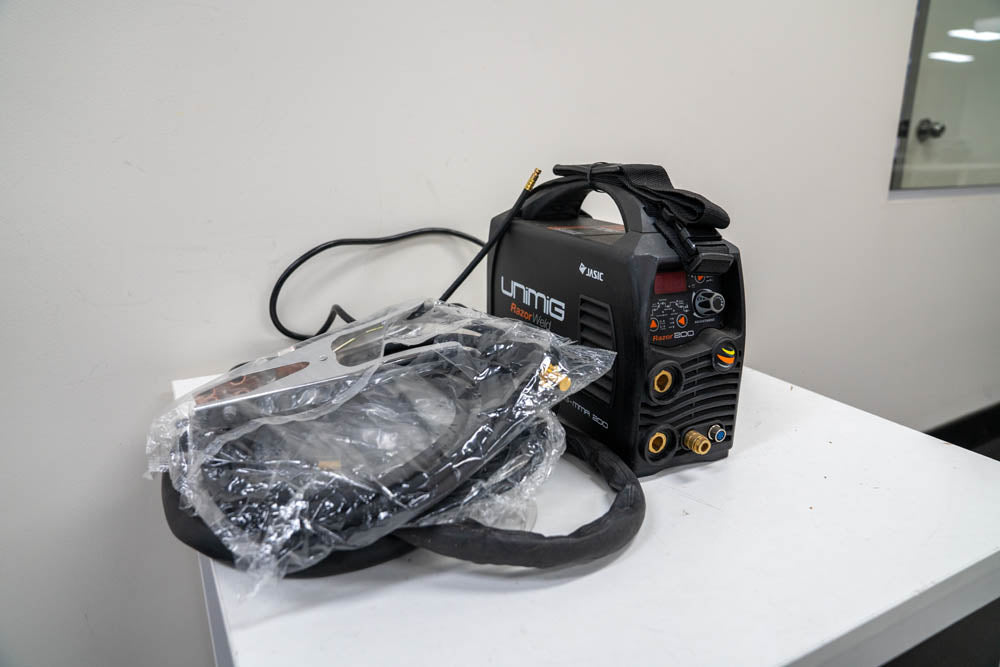

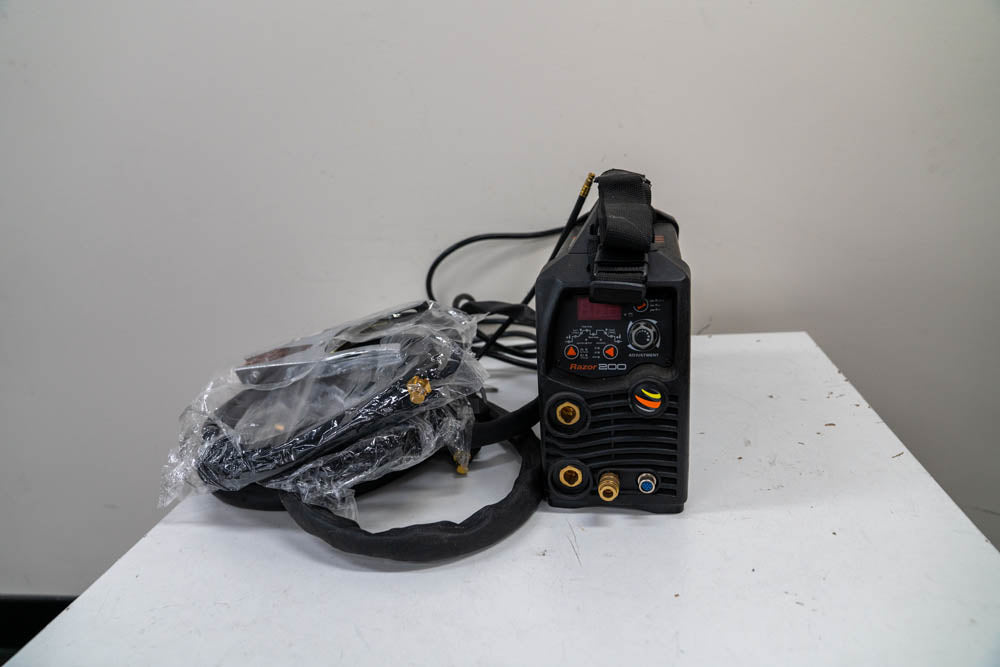

Used – no original box, no flowmeter
Serial Number: I14070828
Warranty: 3 Years
Condition Description
A - Like New: The machine is in excellent condition with no visible signs of wear, appearing nearly identical to a brand new item.
B - Very Good: The machine shows minor signs of use, such as small scratches or scuffs, but operates flawlessly.
C - Good: The machine exhibits moderate wear, including visible scratches or minor dents, but functions properly.
D - Acceptable: The machine has significant signs of use, including large scratches or dents, but still functions correctly.
Refurbished Product Disclaimer
Please read the following information carefully before making a purchase of refurbished products from our website:
Product Condition: The machines available for sale in this section are either refurbished or new with damaged packaging.
Each refurbished machine has been repaired by UNIMIG using genuine new parts.
Warranty: All refurbished items retain their original warranty as specified in the product listing above. Please refer to the product details for specific warranty information.
Returns Policy: We do not accept change of mind returns for refurbished items.
We strongly encourage you to review the provided photos and the condition description listed above each product before making a purchase.
Delivery: These items are available for delivery only. Unfortunately, we do not offer pick-up options for refurbished products.
By proceeding with a purchase, you acknowledge and accept these terms and conditions. For any further inquiries or clarifications, please contact our customer support team.
Description & Specifications

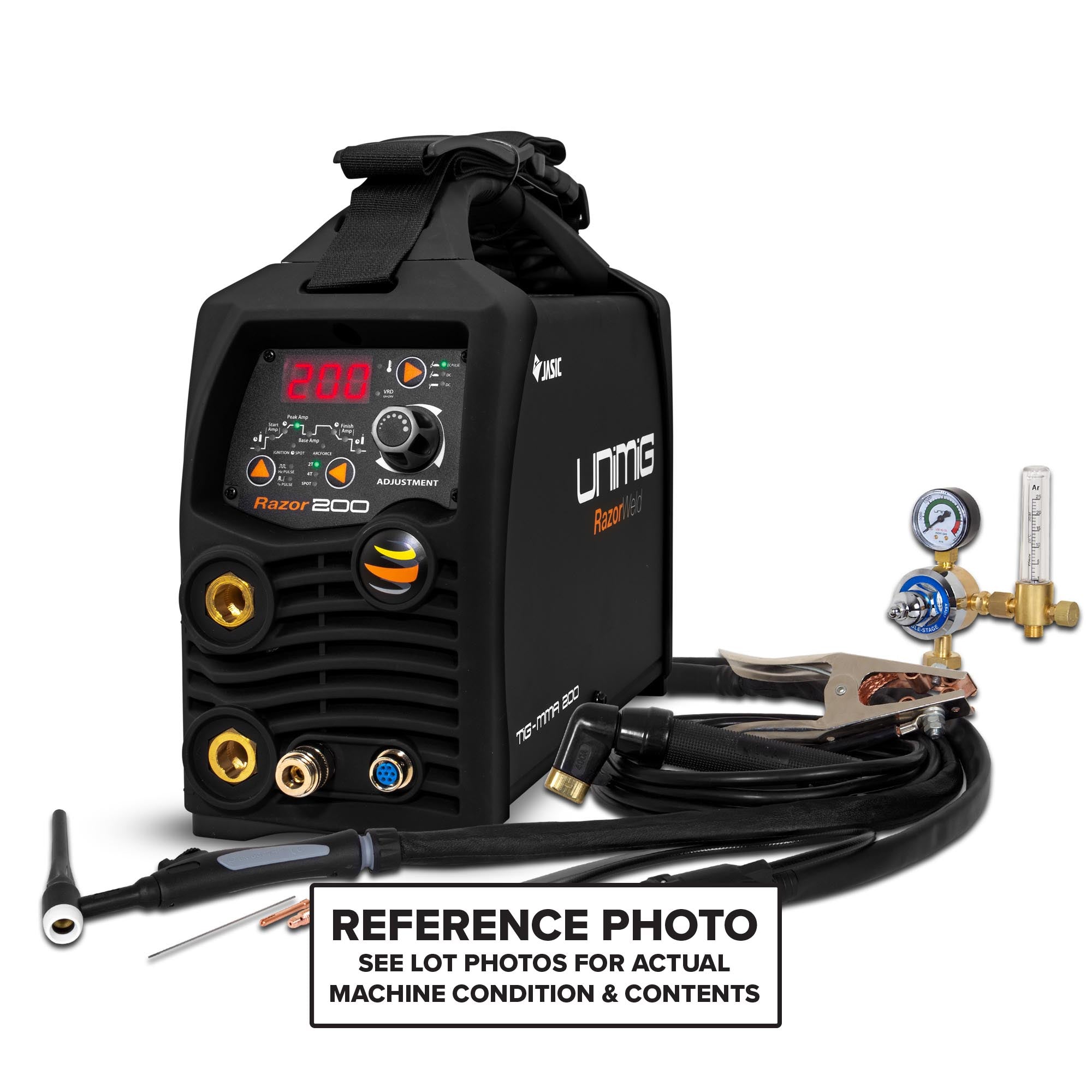

The RAZOR™ 200 DC gives you full control over High Frequency DC TIG welding for incredible results from start to finish. Fitted with a portable 15 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite.
Tailor your TIG settings with a wide range of controllable parameters including Pre-Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post-Gas Time.
15 AMP Plug
DC High-Frequency TIG
Pulse TIG Function
2T/4T Torch Modes
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 15 AMP
RATED INPUT POWER (kVA): 7
Ieff (A): 14.6
RATED OUTPUT: 5-200A
NO LOAD VOLTAGE (V): 9-75
PROTECTION CLASS: IP21S
INSULATION CLASS: F
POWER FACTOR: 0.7
MINIMUM GENERATOR (kVA): 10
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
WARRANTY (Years): 3
TIG FUNCTION TYPE: DC HF TIG / DC Pulse
TIG WELDING CURRENT RANGE: 5-200A
TIG DUTY CYCLE @ 40°C: 25% @ 200A
TIG WELDING THICKNESS RANGE: 1-8mm
STICK WELDING CURRENT RANGE: 10-180A
STICK DUTY CYCLE @ 40°C: 25% @ 180A
STICK ELECTRODE RANGE: 2.5-4.0mm
STICK WELDING THICKNESS RANGE: 2-12mm
ARC FORCE: 0-180
DIMENSIONS (mm): 365x135x277mm
WEIGHT (kg): 6.5kg
VRD: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
